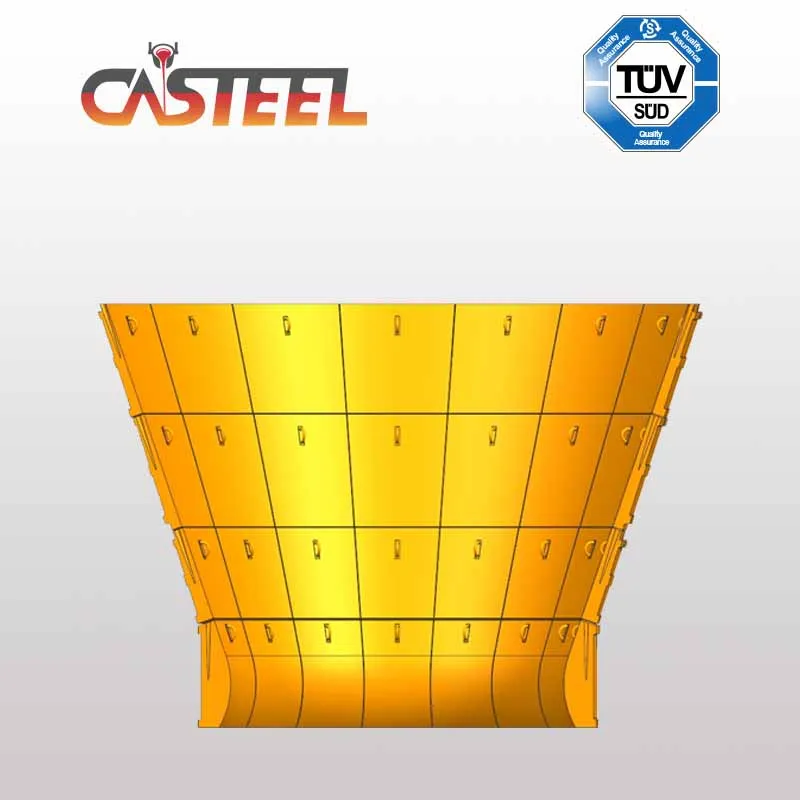

Description Of Gyratory Crusher Parts :
Item Names: Gyratory Mantle ,Concave Segment,,Mantle Liner,Gyratory crusher Liner
Concave Upper,Concave Lower,Spider Arm Shield, Spider Cap, Heat Nut,Top Shell Liner, Locking Nut, Narrow Arm Liner, Eccentric Bushing, Frame Bushing, Dome Cap
Casting Material: Austenstic Manganese Steel (M14Cr2| Mn18Cr2|Mn22Cr2)
Casting Method: Water Glass Sand Casting
Applications:Mining Ore Processing, Quarry,
Applicable Material:Gravel| Granitel Basalt| Iron Ore|Copper Ore Gold Ore |Cobblestone
CASTEEL Foundry has understanding of ThyssenKrupp Primary Gyratory Series Match with following Models :
Primary Gyratory Crushers: KB54-67|BK54-67|KB54-75|BK63-75|KB63-75|KB63-89| KB63-114 |KB63-130
| Part Number | Part Description | Model | Weight |
| 4626505 | Upper Shell Upper Concave | KB63-89 | 370 |
| 4626506 | Bottom concave Upper shell 4350735 | KB63-89 | 404 |
| 4626507 | Lower Shell Upper Concave 4350732 | KB63-89 | 320 |
| 4626508 | Bottom Concave Lower Shell 4470317 | KB63-89 | 463 |
| 2080727606 | Rim Liner Plate L 4350810 | KB63-89 | 732 |
| 2080727607 | Rim Liner Plate M 4350811 | KB63-89 | 2592 |
| 2080727608 | Rim Liner Plate R 4350812 | KB63-89 | 732 |
| 4609955 | Upper Armor Of The Main Shaft | KB63-89 | 5495 |
| 4609954 | Lower Armor Of The Main Shaft | KB63-89 | 7080 |
| 2080727643 | Set Of Armor Plates 4350850 | KB63-89 | 1930 |
| 2080656723 | Mantle Lower Part, Oversized 4470237 | KB63-89 | 8300 |
| 2080656717 | Mantle, Top 4350704 | KB63-89 | 5490 |
| 2080656716 | Mantle, Lower Part 4350703 | KB63-89 | 6740 |
| 4631011001 | Liner | KB63-89 | 113 |
| 4631011004 | Liner | KB63-89 | 107 |
| 4631011007 | Liner | KB63-89 | 107 |
| 4350811 | Rim Plate M (8pcs/set) | KB63-89 | 648 |
| 2080727641 | Protective Plates Bottom Bowls 4350848 | KB63-89 | 753 |
| 4631011003 | Wear Plate 25-594X963 | KB63-89 | 113 |
| 4350849 | Wear Plate | KB63-89 | 622 |
| 2080670952 | Upper Mantle | KB63-75 | 3448 |
| 2080670953 | Lower Mantle | KB63-75 | 6560 |
| 2081614274 | Arm Liner Outside For Bottom Shell | KB63-75 | 243 |
| 2081614275 | Arm Liner Inside For Bottom Shell | KB63-75 | 329 |
| 2080656100 | Upper Concave- Upper Shell,4609209 | KB63-75 | 5520 |
| 2080656101 | Lower Concave- Upper Shell, 4609210 | KB63-75 | 5856 |
| 2080656102 | Upper Concave-Lower Shell,4609211 | KB63-75 | 4656 |
| 2080647769 | Lowre Concave-Lower Shell, 4609207 | KB63-75 | 5408 |
| 2081614193 | Concave Complete, 4626217 | KB63-75 | 24523 |
| 2080643975 | Arm Cheek Plate, Lower Internal Kb | KB63-130 | 772 |
| 2080643974 | Arm Cheek Plate, Lower External Kb | KB63-130 | 610 |
| 2080647674 | Lower Concaves- Upper Shell | KB63-130 | 540 |
| 2080647673 | Upper Concaves- Upper Shell | KB63-130 | 425 |
| 2080643962 | Lower Concaves- Upper Shell | KB63-130 | 8790 |
| 2080643961 | Upper Concaves- Upper Shell | KB63-130 | 11210 |
| 2081610227 | Lower Concaves- Lower Shell Oss 280 | KB63-130 | 960 |
| 2080647675 | Upper Concaves- Lower Shell | KB63-130 | 425 |
