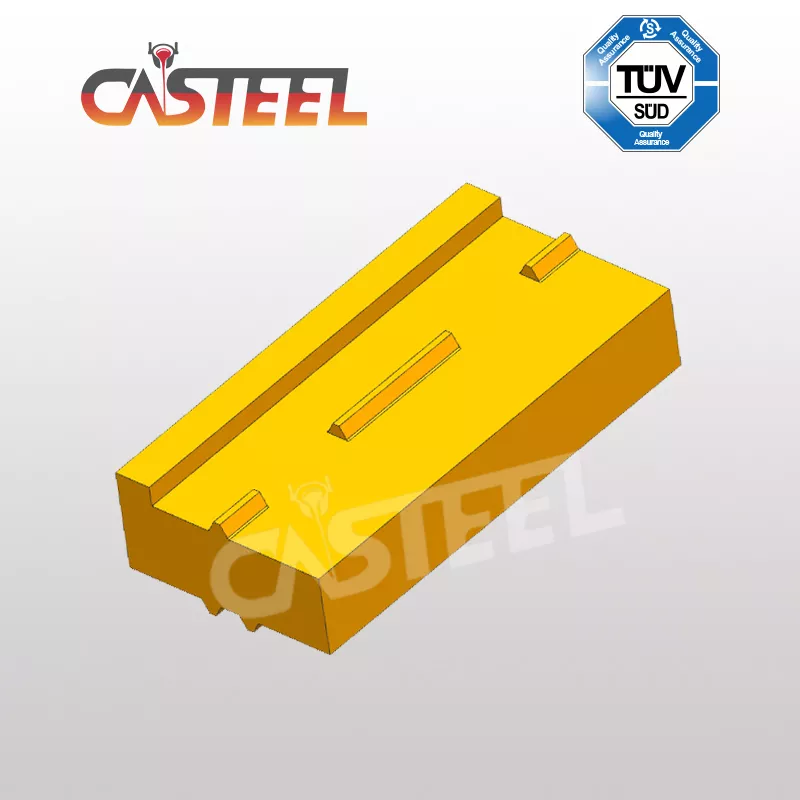

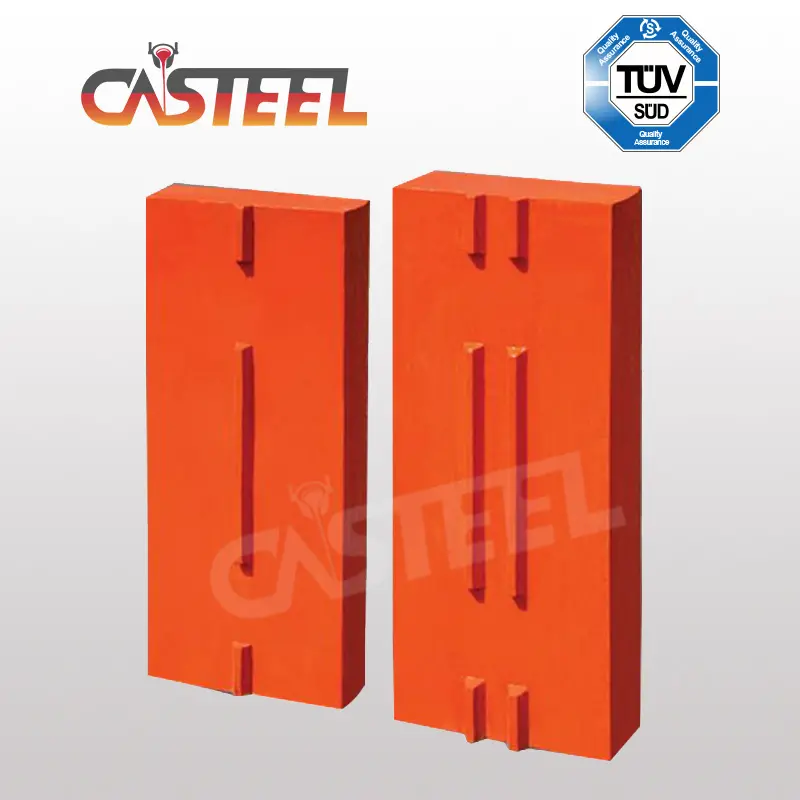

Description of Blow Bars :
Item Names: Blow Bar,Blow Hammer, Impactor Hammer,Impator Bar,Impactor Liner
Impact plate, Curtain Liner, Breaker Plate, Apron liner,Scale Board,Grinding Bar, Kickback Plate
HSI Crusher Parts, Square steel,Liner Plates,Side Liner, Impact Rack,Grinding Path
Casting Material: Chormium Cast Iron, Martensite Alloy Steel, CeramicInserts
Casting Method: Water Glass Sand Casting, Lost Foam Casting
Applicable Material:Gravell Granite Basalt| Ore| Limestonel Sandstone|Quatz|cobblestone
Applications: Quarry,Construction,Cement, Asphalt & Concrete Aggregates Recycling & Shaping
CASTEEL Foundry has long understanding and coverage Of Shanghai Jianshe Lugiao Impact crushers match with following models:
Shanghai Shanbao PF Series: PF-1007|PF-1010|PF-1210|PF-1214|PF-1315V|PF-1320|PF-1420|PF-1515|PF-1620
| Parts Number | Parts Name | Weight(kg) | Model |
| K3603.04-13 | Blow Bar | 268 | PF1210 |
| K3605AG.03-4A | Impact Plate | 30.6 | PF1210 |
| K3602BS.4Z-1 | Liner Plate | 30 | PF1210 |
| K3602BS.4Z-2 | Liner Plate | 18 | PF1210 |
| K3602BS.4Z-3 | Liner Plate | 16.2 | PF1210 |
| K3602BS.4Z-4 | Liner Plate | 19.3 | PF1210 |
| K3602BS.4Z-5 | Liner Plate | 24 | PF1210 |
| K3602BS.4Z-6 | Liner Plate | 17.7 | PF1210 |
| K3602BS.4Z-7 | Liner Plate | 13.2 | PF1210 |
| K3602BS.4Z-8 | Liner Plate | 5.5 | PF1210 |
| K3602BS.4Z-9 | Liner Plate | 13.5 | PF1210 |
| K3602BS.4Z-10 | Liner Plate | 14 | PF1210 |
| K3602BS.4Z-11 | Liner Plate | 15.4 | PF1210 |
| K3602BS.4Z-13 | Liner Plate | 19.2 | PF1210 |
| K3602BS.4Z-16 | Liner Plate | 19.2 | PF1210 |
| K3603.01-8 | Square Steel | 100.48 | PF1210 |
| K3603.04-14 | Blow bar Lock | 7.5 | PF1210 |
| K3602.04-5 | Blow Bar | 178 | PF1214 |
| K3605AG.03-4A | Impact Plate | 30.6 | PF1214 |
| K3602BS.4Z-1 | Liner Plate-L | 30 | PF1214 |
| K3602BS. 4Z-1 | Liner Plate-R | 30 | PF1214 |
| K3602BS. 4Z-2 | Liner Plate-L | 18 | PF1214 |
| K3602BS. 4Z-2 | Liner Plate-R | 18 | PF1214 |
| K3602BS. 4Z-3 | Liner Plate-L | 16.2 | PF1214 |
| K3602BS.4Z-3 | Liner Plate-R | 16.2 | PF1214 |
| K3602BS.4Z-4 | Liner Plate-L | 19.3 | PF1214 |
| K3602BS.4Z-5 | Liner Plate-L | 24 | PF1214 |
| K3602BS.4Z-6 | Liner Plate-L | 17.7 | PF1214 |
| K3602BS.4Z-6 | Liner Plate-R | 17.7 | PF1214 |
| K3602BS.4Z-7 | Liner Plate | 13.2 | PF1214 |
| K3602BS.4Z-8 | Liner Plate | 5.5 | PF1214 |
| K3602BS.4Z-9 | Liner Plate-L | 13.5 | PF1214 |
| K3602BS.4Z-9 | Liner Plate-R | 13.5 | PF1214 |
| K3602BS.4Z-10 | Liner Plate | 14 | PF1214 |
| K3602BS.4Z-11 | Liner Plate-L | 15.4 | PF1214 |
| K3602BS.4Z-12 | Liner Plate | 23.8 | PF1214 |
| K3602BS.4Z-13 | Liner Plate | 19.2 | PF1214 |
| K3602BS.4Z-14 | Liner Plate | 19.2 | PF1214 |
| K3602BS.4Z-15 | Liner Plate | 23.8 | PF1214 |
| K3602BS.4Z-16 | Liner Plate | 19.2 | PF1214 |
| K3602BS.4Z-17 | Liner Plate | 19 | PF1214 |
| K3602.01-8 | Square Steel | 126.78 | PF1214 |
| K3603.04-14 | Blow bar Lock | 7.5 | PF1214 |
| K3611.4-1 | Blow Bar | 320 | PF1315 |
| K3611.2-1 | Impact Plate 1 | 44 | PF1315 |
| K3611.1-1 | Impact Plate 2 | 42 | PF1315 |
| K3611.1-3 | Impact Plate 3 | 38 | PF1315 |
| K3611.6-1 | Liner Plate | 13 | PF1315 |
| K3611.6-2 | Liner Plate | 24 | PF1315 |
| K3611.6-3 left | Liner Plate-L | 38 | PF1315 |
| K3611.6-3 right | Liner Plate-R | PF1315 | |
| K3611.6-4 | Liner Plate | 14 | PF1315 |
| K3611.6-5 | Liner Plate | 29 | PF1315 |
| K3611.6-6 left | Liner Plate-L | 46 | PF1315 |
| K3611.6-6 right | Liner Plate-R | PF1315 | |
| K3611.6-7 | Liner Plate | 14 | PF1315 |
| K3611.6-8 | Liner Plate | 30 | PF1315 |
| K3611.6-9 left | Liner Plate-L | 45 | PF1315 |
| K3611.6-9 right | Liner Plate-R | PF1315 | |
| K3611.6-10 | Liner Plate | 48 | PF1315 |
| K3611.6-11 left | Liner Plate-L | 50 | PF1315 |
| K3611.6-11 right | Liner Plate-R | PF1315 | |
| K3611.6-12 left | Liner Plate-L | 17 | PF1315 |
| K3611.6-12 right | Liner Plate-R | PF1315 | |
| K3611.6-13 | Liner Plate | 41 | PF1315 |
| K3611.6-14 | Liner Plate | 43 | PF1315 |
| K3611.6-15 left | Liner Plate-L | 50 | PF1315 |
| K3611.6-15 right | Liner Plate-R | PF1315 | |
| K3611.6-16 left | Liner Plate-L | 33 | PF1315 |
| K3611.6-16 right | Liner Plate-R | PF1315 | |
| K3611.6-17 left | Liner Plate-L | 50 | PF1315 |
| K3611.6-17 right | Liner Plate-R | PF1315 | |
| K3611.6-18 | Liner Plate | 28 | PF1315 |
| K3611.6-19 | Liner Plate | 51 | PF1315 |
| K3611.6-20 | Liner Plate | 25 | PF1315 |
| K3611.6-21 | Liner Plate | 48 | PF1315 |
| K3611.6-22 | Liner Plate | 35 | PF1315 |
| K3611.6-23 | Liner Plate | 44 | PF1315 |
| K3611.6-24 | Liner Plate | 126 | PF1315 |
| K3611.6-25 | Liner Plate | 21 | PF1315 |
| K3611.6-26 | Liner Plate | 24 | PF1315 |
| K3611.6-27 | Liner Plate | 56 | PF1315 |
