Decription of Jaw Plate :
Item Names: Jaw Plates,Stationary Jaw Tooth, Movable Jaw Die Fixed Jaw, Swing Jaw Plate,
Jaw Fixed, Jaw Moveable ,Cheek Plate ,Side Plate,Jawface Fixed,Crusher Jaw Loose
Casting Material: Austenstic Manganese Steel (Mn14, M14Cr2,Mn18Cr2, Mn22Cr2)
Casting Method: Water Glass Sand Casting
Applicable Material:Gravel, Granite, Basalt, Ore, Limestone,Sandstone ,Quatz,Cobblestone
Applications: Mining , Quarry, Construction ,Cement and Materials,Recycling
CASTEEL Foundry has long understanding and coverage of CMD/SMD Jaw Series match with following Models
Russia CMD/SMD Jaw Series CMA-741 |CMA-108|CMA-109|CMA-110|CMA 118ICMA 111]CMA 117
| Item Code | Item name | Model | Weight |
| 254-0-0-1Б | Плита подвижная | СМД-741 | 460 |

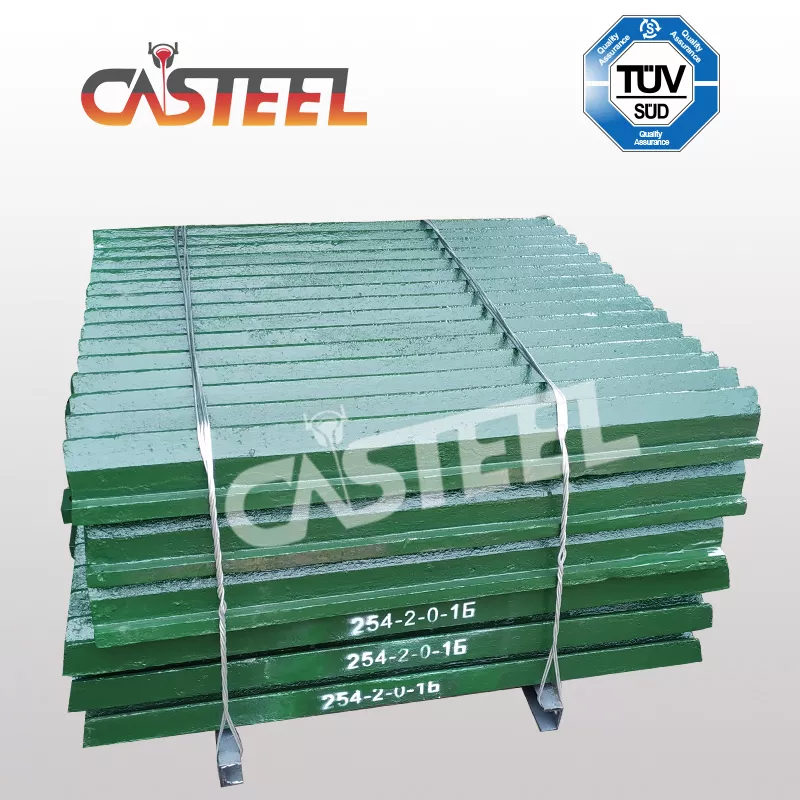

| 254-2-0-1Б | Плита неподвижная | СМД-741 | 450 |
| 254-0-0-1А | Плита подвижная | СМД-741 | 393 |
| 254-2-0-1А | Плита неподвижная | СМД-741 | 450 |
| 254-0- 0-13 | Футеровка верх. правая/ Right upper liner | СМД-741 | 54 |
| 254-0-0-14 | Футеровка верх. левая/ Left upper liner | СМД-741 | 54 |
| 168-0-2 | Клин нижн правый/ Right lower liner | СМД-741 | 19 |
| 168-0-3 | Клин нижн левый/ Left lower liner | СМД-741 | 19 |
| 4844800009 | Fix Jaw Plate | СМД-108 | 290 |
| 4844802022 | Swing Jaw plate | СМД-108 | 292 |
| 4844902016 | Плита подвижная | СМД-109 | 485 |
| 1090000002 | Плита неподвижная | СМД-109 | 430 |
| 109.00.00.004 | Футеровка верх. правая/ Right upper liner | СМД-109 | 55 |
| 109.00.00.005 | Футеровка верх. левая/ Left upper liner | СМД-109 | 55 |

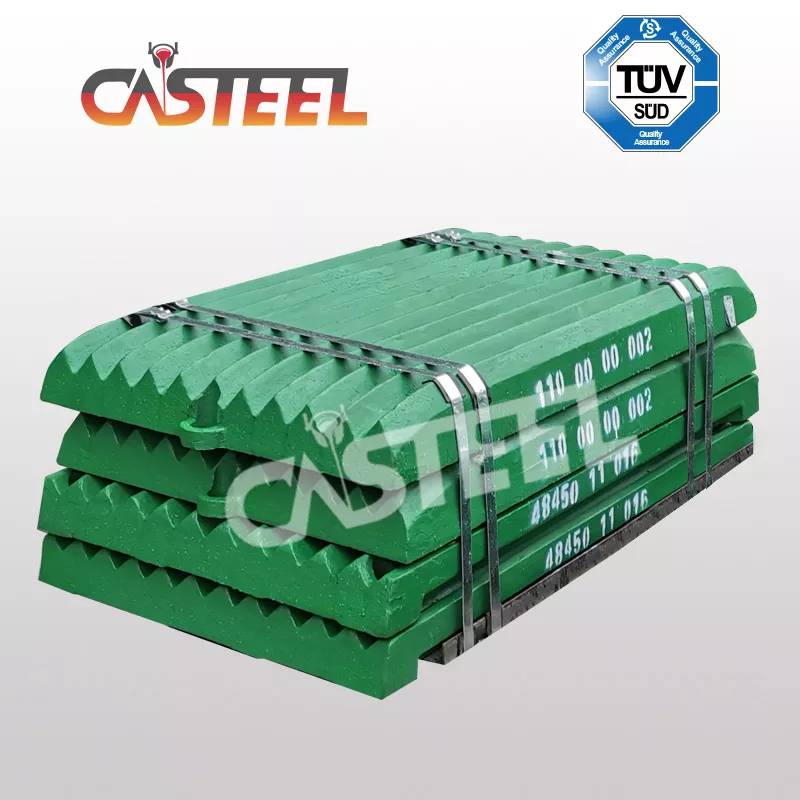

| 4845011016 | Плита подвижная | СМД-110 | 992 |

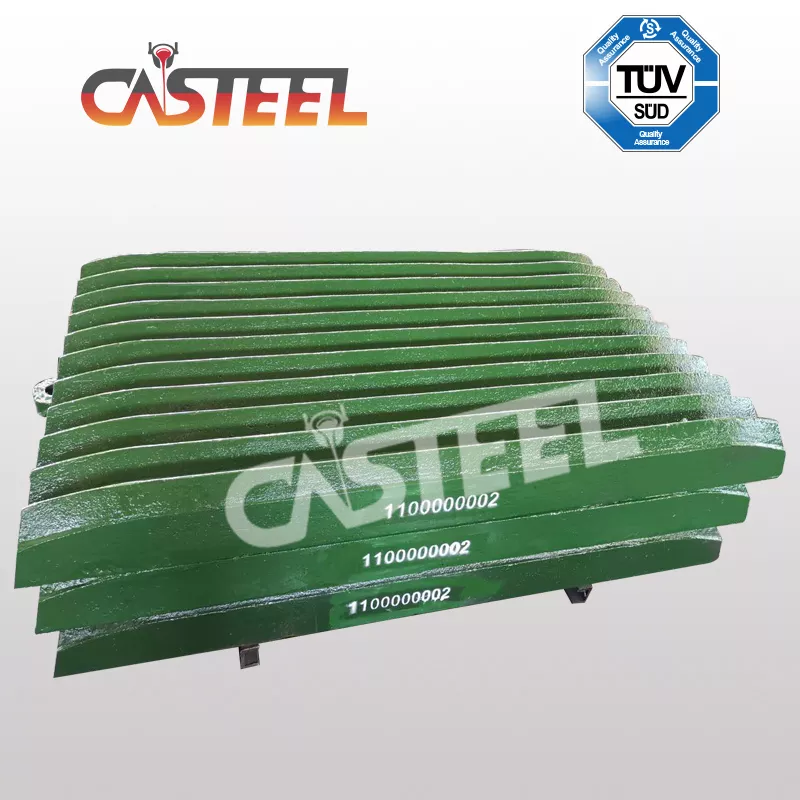

| 1100000002 | Плита неподвижная | СМД-110 | 865 |
| 4845000018 | Футеровка верх. правая/ Right upper liner | СМД-110 | 135 |
| 4845000019 | Футеровка верх. левая/ Left upper liner | СМД-110 | 135 |
| 4845000021 | Клин нижн правый/ Right lower liner | СМД-110 | 80 |
| 4845000022 | Клин нижн левый/ Left lower liner | СМД-110 | 80 |
| ST-1116.19 | Fix Jaw Plate | 525 | |
| ST-1116.224 | Swing Jaw plate | 550 | |
| 3440.01.110.0023.K | Jaw plate, fixed | СМД 111 | 840 |
| 3440.02.010.0023.K | Jaw plate, movable | СМД 111 | 880 |
| 3440.02.020.0023.K | Jaw plate, movable | СМД 111 | 960 |
| S50-00-0111 | Jaw Plate | 1704 | |
| S50-00-2011 | Jaw Plate | 2074 | |
| S50-00-2021 | Jaw Plate | 2073 | |
| 3450.01.111M.K | Jaw plate, fixed | СМД 118 | 2000 |
| 3450.02.011M.K | Jaw plate, movable (lower) | СМД 118 | 2450 |
| 3450.02.021M.K | Jaw plate, movable (upper) | СМД 118 | 2350 |
| 3460.02.011.00 | Jaw plate | СМД 117 | 1150 |
| 3460.02.021.00 | Jaw plate | СМД 117 | 1650 |
| 3460.02.031.00 | Jaw plate | СМД 117 | 1460 |
| 3460.01.111.00 | Jaw plate | СМД 117 | 700 |
