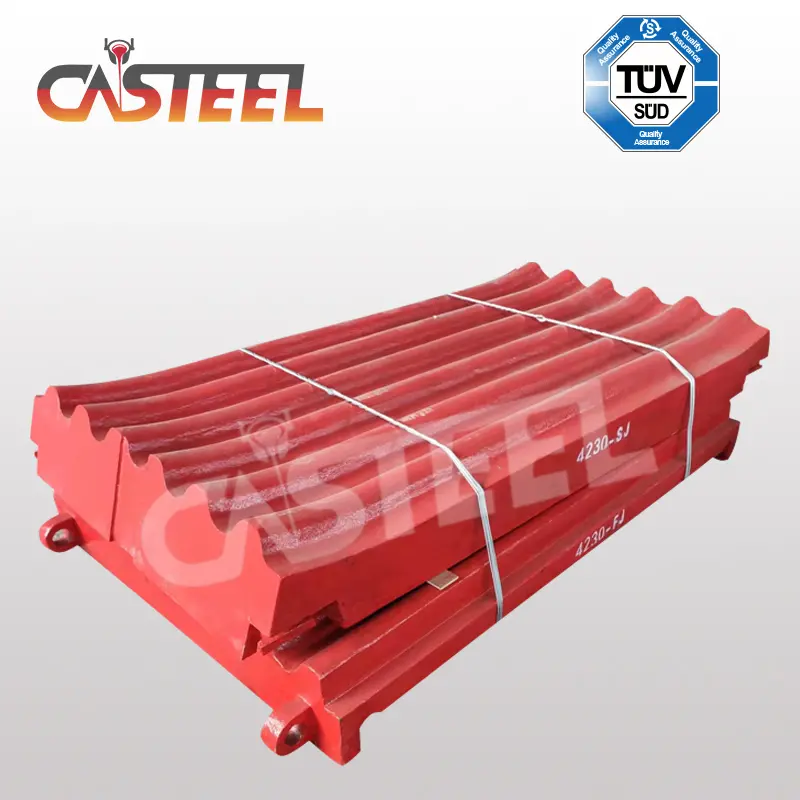

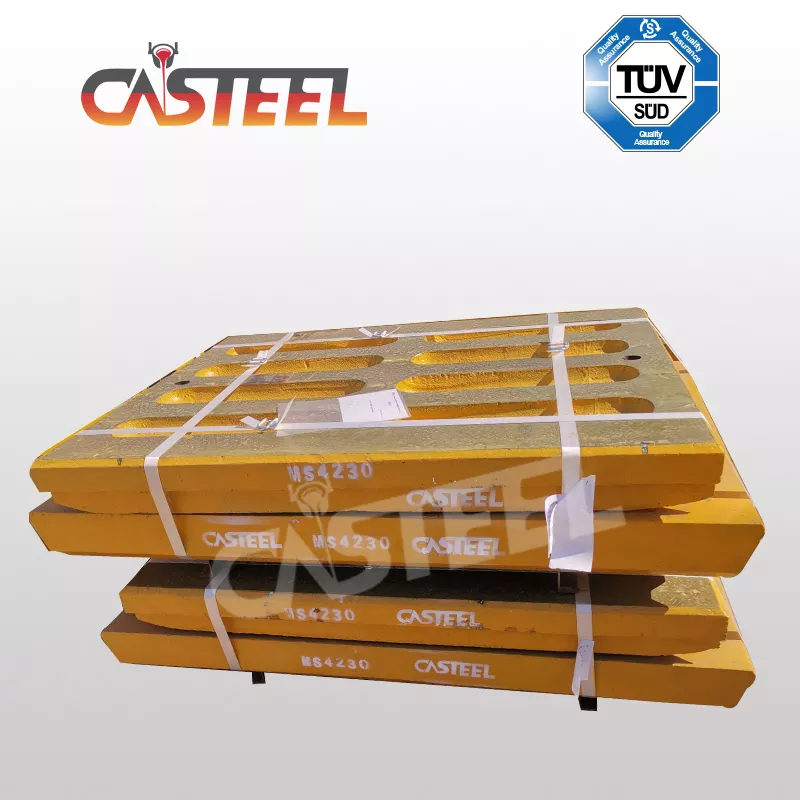

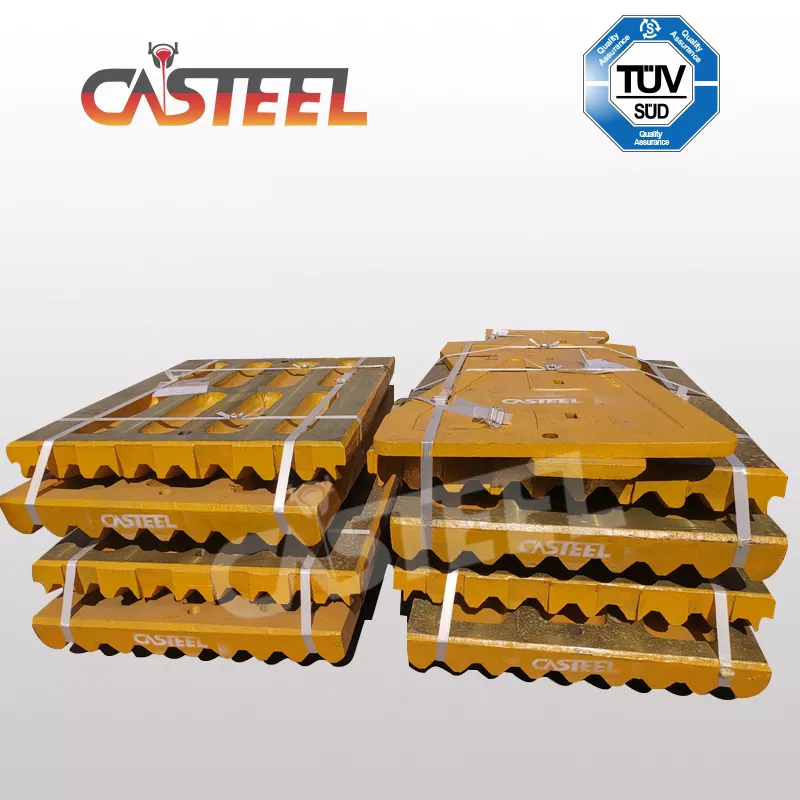

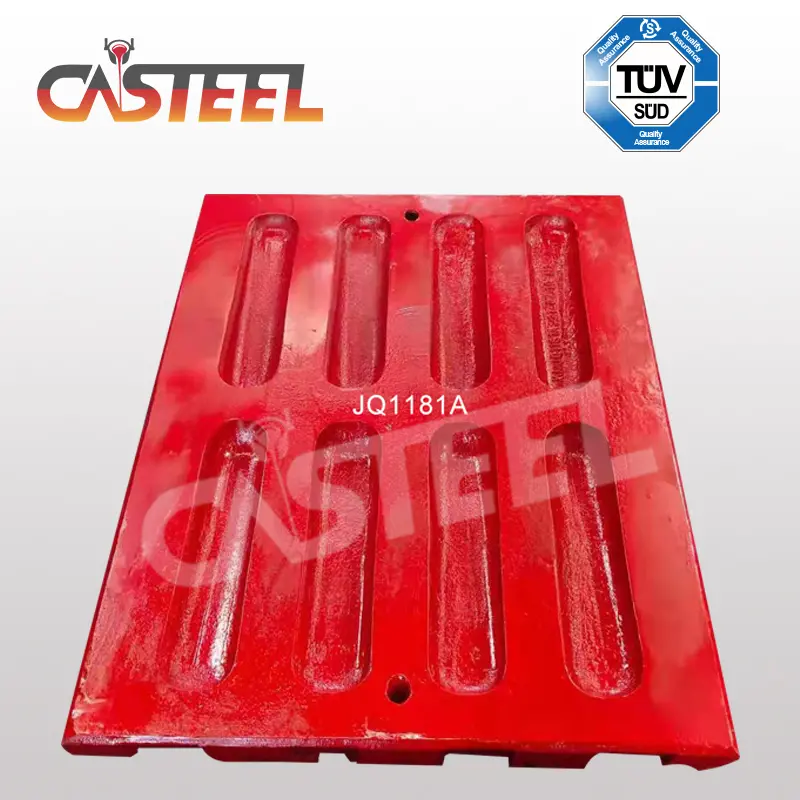

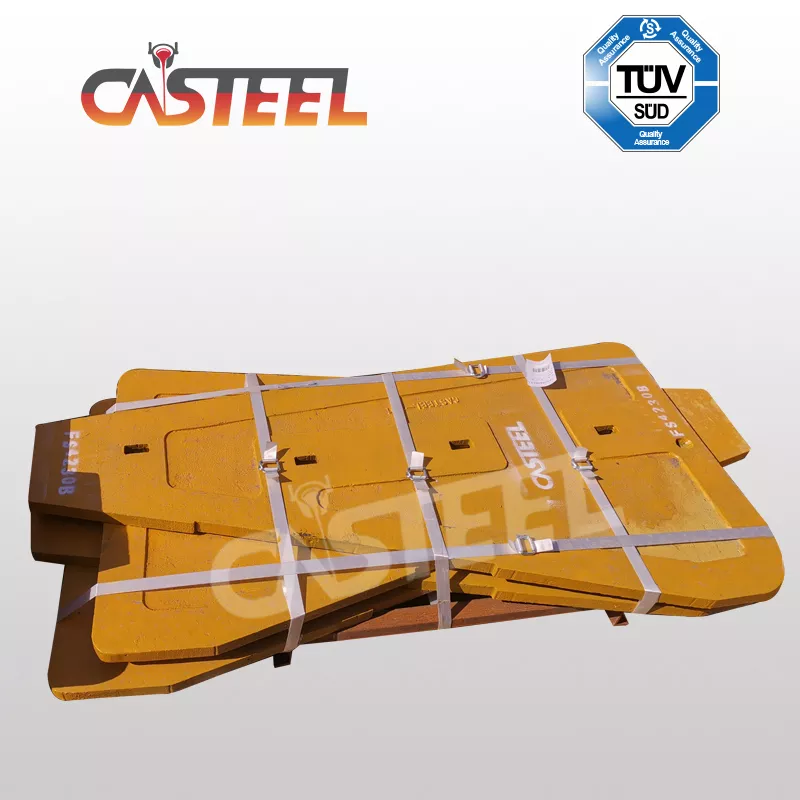

Parker Plant Jaw Plate :
Item Names: Jaw Plates,Stationary Jaw Tooth, Movable Jaw Die Fixed Jaw, Swing Jaw Plate,
Jaw Fixed, Jaw Moveable ,Cheek Plate ,Side Plate,Jawface Fixed,Crusher Jaw Loose
Casting Material: Austenstic Manganese Steel (Mn14, M14Cr2,Mn18Cr2, Mn22Cr2)
Casting Method: Water Glass Sand Casting
Applicable Material:Gravel, Granite, Basalt, Ore, Limestone,Sandstone ,Quatz,Cobblestone
Applications: Mining , Quarry, Construction ,Cement and Materials,Recycling
CASTEEL Foundry has long understanding and coverage of British Parker Jaw crushers match with following Models
Parker40x32 | Parker 36×10 | Parker 38×12 Stonesizer | Parker 20×12 | Parker16x10 | Parker16x5
| Part Number | Item Name | Decription | Model |
| 1CD36 | Fixed Jaw | Jaw Liner | 900×600 |
| 3CD36 | Swing Jaw | Jaw Liner | 900×600 |
| 5CD36 | Side Liner Plate | Jaw Liner | 900×600 |
| 6CD36 | Side Liner Plate | Jaw Liner | 900×600 |
| 7CD36 | Side Liner Plate | Jaw Liner | 900×600 |
| 4CD36 | Wedge | Jaw Liner | 900×600 |
| 322817396 | Wedge – Bolt Swing Jaw | Jaw Liner | 900×600 |
| 2CD36 | Wedge-Fixed Jaw | Jaw Liner | 900×600 |
| 486001019 | Toggle Plate | Jaw Liner | 900×600 |
| 335280418 | End Plate | Jaw Liner | 900×600 |
| 468222559 | Cover Plate | Jaw Liner | 900×600 |
| 486063217 | Toggle Seat | Jaw Liner | 900×600 |
| 486063209 | Toggle Seat | Jaw Liner | 900×600 |
| 73CD42 | Fixed Jaw | Jaw Liner | 1100×650 |
| 77CD42 | Swing Jaw | Jaw Liner | 1100×650 |
| 439100587 | Side Liner Plate | Jaw Liner | 1100×650 |
| 439102377 | Side Liner Plate | Jaw Liner | 1100×650 |
| 82CD42 | Side Liner Plate | Jaw Liner | 1100×650 |
| 486000912 | Toggle Plate | Jaw Liner | 1100×650 |
| 83CD42 | Side Liner Plate | Jaw Liner | 1100×650 |
| 486063167 | Toggle Seat | Jaw Liner | 1100×650 |
| 72CD42/1 | Wedge Fixed Jaw | Jaw Liner | 1100×650 |
| 86CD42 | Swing Jaw Wedge | Jaw Liner | 1100×650 |
| 486063175 | Toggle Seat Bottom | Jaw Liner | 1100×650 |
| 23CD42 | Fixed Jaw | Jaw Liner | 1100×800 |
| 26CD42 | Swing Jaw | Jaw Liner | 1100×800 |
| 67CD42 | Liner Plate Top | Jaw Liner | 1100×800 |
| 66CD42 | Liner Plate Bottom | Jaw Liner | 1100×800 |
| 486000839 | Toggle Plate | Jaw Liner | 1100×800 |
| 27CD42 | Wedge Swing Jaw | Jaw Liner | 1100×800 |
| 24CD42 | Wedge Fixed Jaw | Jaw Liner | 1100×800 |
| 486063084 | Toggle Seat | Jaw Liner | 1100×800 |
| 486063092 | Toggle Seat Bottom | Jaw Liner | 1100×800 |
| 38CD50 | Liner Plate – Top L.H (Pt04) | Jaw Liner | 1300×1050 |
| 39CD50 | Liner Plate – Top R.H (Pt04) | Jaw Liner | 1300×1050 |
| 40CD50 | Liner Plate – Middle (Pt04) | Jaw Liner | 1300×1050 |
| 41CD50 | Liner Plate – Bottom | Jaw Liner | 1300×1050 |
| 439100538 | Backplate – Fixed Jaw | Jaw Liner | 1300×1050 |
| 439102344 | Backplate – Swing Jaw | Jaw Liner | 1300×1050 |
| 486000847 | Toggle Plate M | Jaw Liner | 1300×1050 |
| 439100538 | Backplate – Fixed Jaw | Jaw Liner | 1300×1050 |
| 439102344 | Backplate – Swing Jaw | Jaw Liner | 1300×1050 |
| 15CD50 | Moving Jaw | Jaw Liner | 1300×1050 |
| 12CD50 | Fixed Jaw Wedge | Jaw Liner | 1300×1050 |
| 13CD50 | Swing Jaw Quarter | Jaw Liner | 1300×1050 |
| 37CD50 | Wedge – Swing Jaw | Jaw Liner | 1300×1050 |
| 12CD50 | Fixed Jaw Wedge | Jaw Liner | 1300×1050 |
| 37CD50 | Wedge – Swing Jaw | Jaw Liner | 1300×1050 |
| 486063159 | Toggle Seat | Jaw Liner | 1300×1050 |
| 486063142 | Toggle Seat – Bottom | Jaw Liner | 1300×1050 |
| 371216250 | Frame – Toggle Seat Angle | Jaw Liner | 1300×1050 |
| 4CD4232 | Moving Jaw Plate | Jaw Liner | Parker 4232 |
| 51CD40 | Fixed Jaw Plate | Jaw Liner | Parker 4232 |
