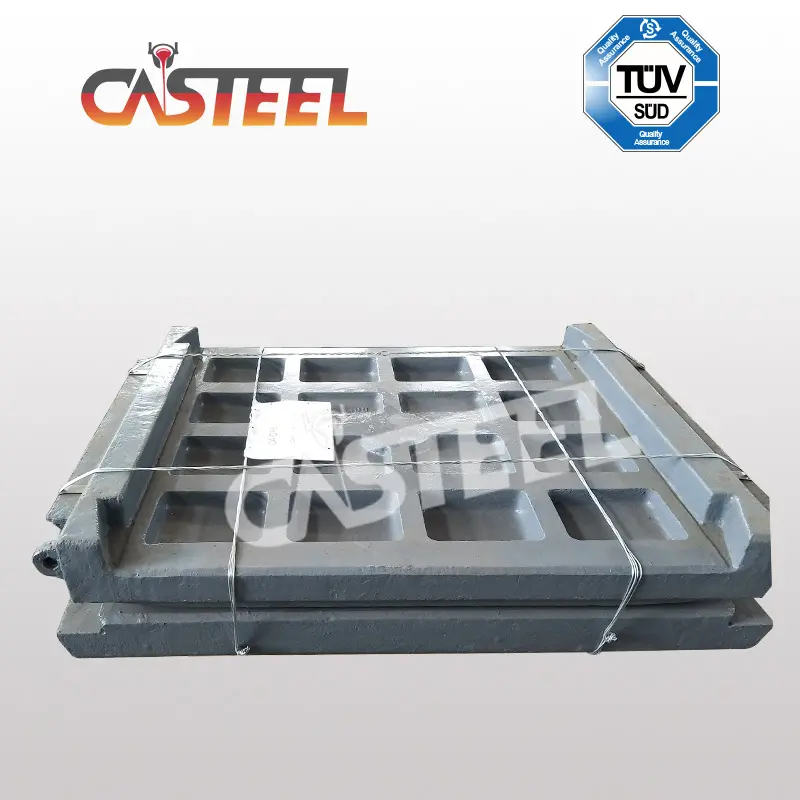

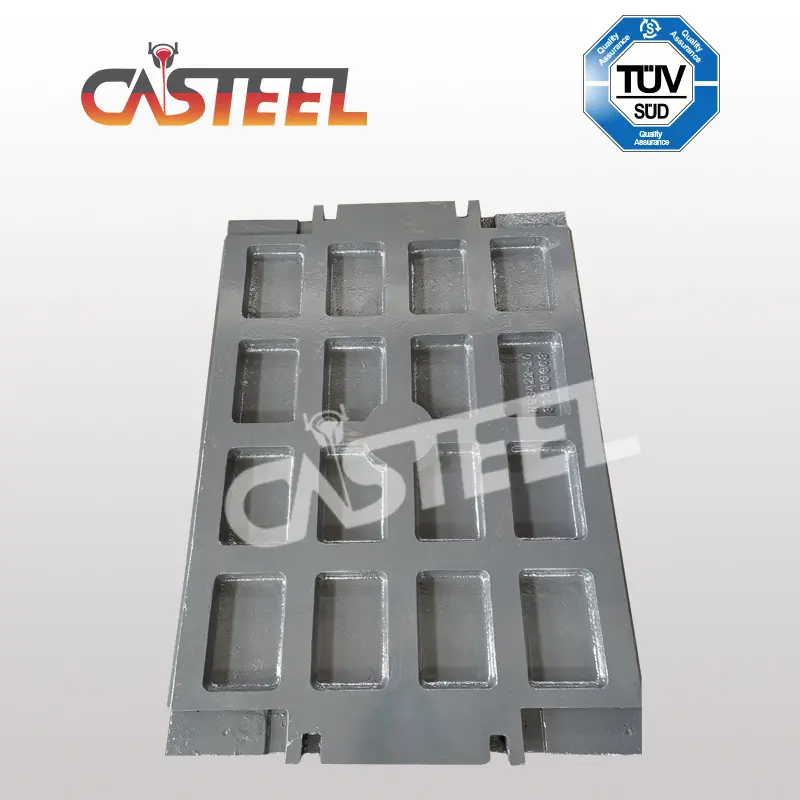

Jaw Crusher Wear Parts :
Item Names: Jaw Plates,Stationary Jaw Tooth, Movable Jaw Die Fixed Jaw, Swing Jaw Plate,
Jaw Fixed, Jaw Moveable ,Cheek Plate ,Side Plate,Jawface Fixed,Crusher Jaw Loose
Casting Material: Austenstic Manganese Steel (Mn14, M14Cr2,Mn18Cr2, Mn22Cr2)
Casting Method: Water Glass Sand Casting
Applicable Material:Gravel, Granite, Basalt, Ore, Limestone,Sandstone ,Quatz,Cobblestone
Applications: Mining , Quarry, Construction ,Cement and Materials,Recycling
Nakayama Primary Range: AC1410|AC2415|AC3219|AC3219B |AC4219|AC4220|AC4220BI AC482|AC6030Nakayama RC Range:SK3624|RC3624 RC4224 RC4228|RC4832|RC5042|RC6048 RS4032|RS4230
CASTEEL Foundry has long understanding and coverage Japanese Nakayama Jaw crushers match with following models
Hitachi Mobile Jaw: HR240|HR420G
| Parts Number | Drawing Number | Parts Name | Crusher Model |

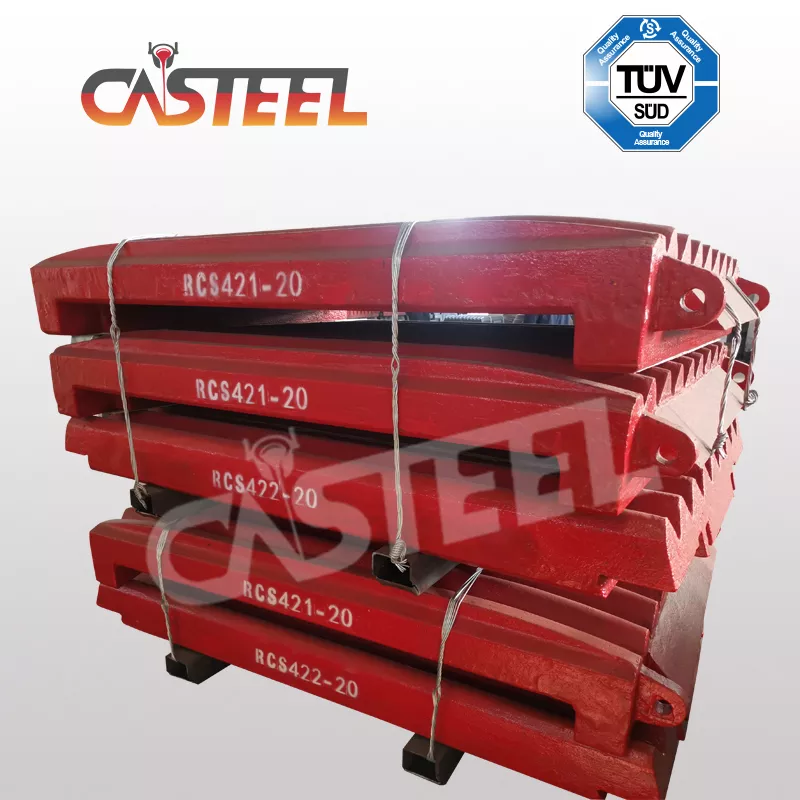

| KZA00782 | RCS421 | Stationary Tooth | RC4228 |
| KZA00783 | RCS422 | Movable Tooth | RC4228 |

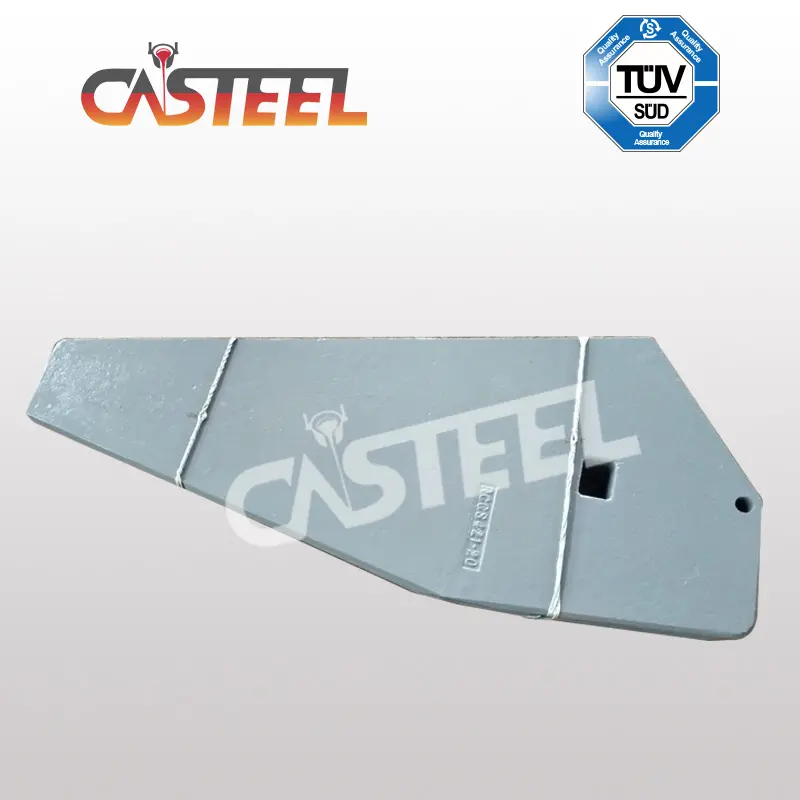

| KZA00784 | RCCS421 | Cheek Plate | RC4228 |
| EHY02325 | Toggle Plate | RC4228 | |
| EHY02318 | Toggle Seat | RC4228 | |
| EHY00529 | Cheek Plate Holder | RC4228 | |
| KZA00786 | RCS42M | Movable Tooth Wedge | RC4228 |
| EHY04098 | Cotter – Stationary Tooth | RC4228 | |
| KZA 01141 | AZW00131 | Hex – Bolt / Nut (Wedge) | RC4228 |
| EHY00829 | AZW00124 | Hex – Bolt/Nut (Cheek Plate) | RC4228 |
| KZA 00785 | Jaw Protector | RC4228 | |
| KZA 00292 | Hex.Bolt.Nut.Ring | RC4228 | |
| KZA 01142 | Hex.Bolt.Nut.Cap | RC4228 | |
| KHA 01895 | Block Cover (R) | RC4228 | |
| KHA 01896 | Block Cover (L) | RC4228 | |
| AZW 00674 | Hex.Bolt & Ring Washer | RC4228 | |
| EHY 02318 | Toggle; E Seat | RC4228 | |
| EHY 02325 | Toggle Plate | RC4228 | |
| AZY 00470 | Tension Rod | RC4228 | |
| AZY00471 | Tension Spring | RC4228 | |
| KZA 01143 | Fixture:Tension Rod | RC4228 | |
| AZY 00160 | Split Pin.Ring Washer | RC4228 | |
| RCC423-20 | Cheek Plate | ||
| C463-20 | Cheek Plate | ||
| A36241003 | Stationary Tooth 2P | SK3624 | |
| A36242002 | Movable Tooth | SK3624 | |
| A36241007 | Cheek Plate:Upper,Right | SK3624 | |
| A36241009 | Cheek Plate:Lower,Right | SK3624 | |
| A36241008 | Cheek Plate:Upper,Left | SK3624 | |
| A36241010 | Cheek Plate:Lower,Right | SK3624 | |
| A36241004 | Stationary Tooth Holder | SK3624 | |
| A36242003 | Movable Tooth Wedge | SK3624 | |
| A36244105 | Toggle Plate 610 Mm | SK3624 | |
| A36244102 | Toggle Seat | SK3624 | |
| A36242006 | Jaw Protector | SK3624 | |
| PBA23248 | Bearing – Jaw | SK3624 | |
| PBA22344 | Bearing-Frame | SK3624 | |
| A36244011 | Wedge Block | SK3624 | |
| W120420250 | Bolt:Wedge Block | SK3624 | |
| PGH05 | Plug | SK3624 | |
| W07180060 | Bolt:Stationary Tooth | SK3624 | |
| A36241014 | Ring Washer:Stationary Tooth | SK3624 | |
| PS9036 | Spring:Stationary Tooth | SK3624 | |
| W1018080 | Bolt:Stationary Tooth Holder | SK3624 | |
| W07125070 | Bolt:Cheek Plate | SK3624 | |
| A36241015 | Ring Washer:Cheek Plate | SK3624 | |
| W12580100 | Bolt:Movable Tooth Wedge | SK3624 | |
| W07150070 | Bolt:Jaw Protector | SK3624 | |
| W12170080 | Bolt: Toggle Block | SK3624 | |
| M27580070 | Bolt:Jaw Protector | SK3624 | |
| PGN9060 | Greese Fitting Assy | SK3624 | |
| PVD280 | V Belt | SK3624 | |
| A2 | Stationary Tooth 2P | RS4032 | |
| A14 | Movable Tooth | RS4032 | |
| A3 | Stationary Tooth Wedge | RS4032 | |
| A15 | Movable Tooth Wedge | RS4032 | |
| A25 | Toggle Plate | RS4032 | |
| A24 | Toggle Seat | RS4032 | |
| A6 | Cheek Plate (Upper Right) | RS4032 | |
| A7 | Cheek Plate (Upper Left) | RS4032 | |
| A8 | Cheek Plate (Lower Right) | RS4032 | |
| A9 | Cheek Plate (Lower Left) | RS4032 |
