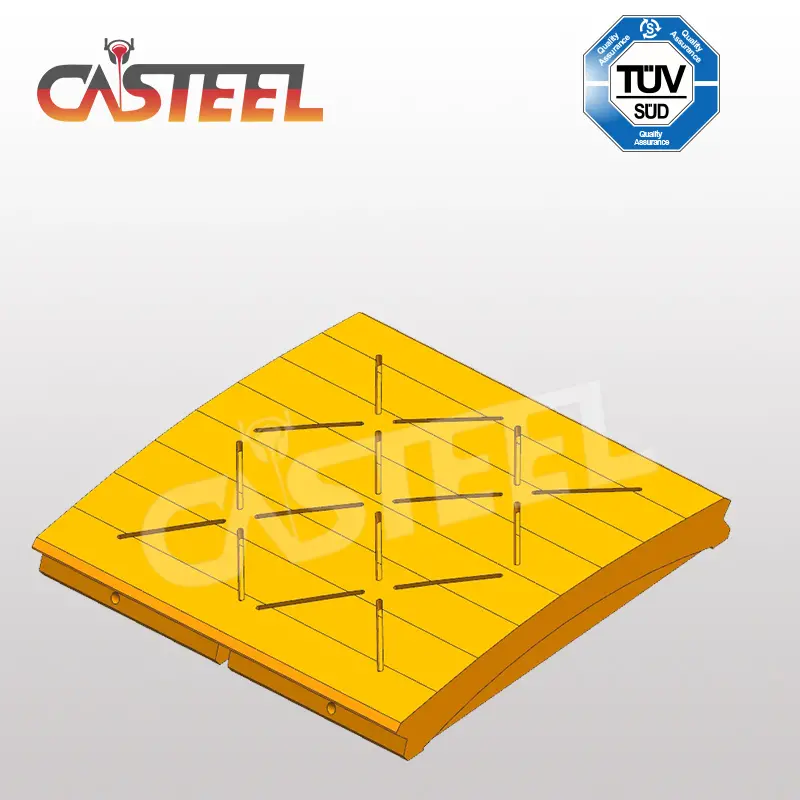

Kue-Ken Jaw Plates

Jaw Crusher Wear Parts :

Item Names: Jaw Plates,Stationary Jaw Tooth, Movable Jaw Die Fixed Jaw, Swing Jaw Plate,
Jaw Fixed, Jaw Moveable ,Cheek Plate ,Side Plate,Jawface Fixed,Crusher Jaw Loose

Casting Material: Austenstic Manganese Steel (Mn14, M14Cr2,Mn18Cr2, Mn22Cr2)

Casting Method: Water Glass Sand Casting

Applicable Material:Gravel, Granite, Basalt, Ore, Limestone,Sandstone ,Quatz,Cobblestone

Applications: Mining , Quarry, Construction ,Cement and Materials,Recycling

Description

CASTEEL Foundry has long understanding and coverage Of Brown Lenox Kue-Ken series Jaw Crushers macth with following Models:
Brown Lenox / Kue Ken Jaw Series:
Model 2213 x 12) Model 24 (5x 12) Model 25 (7×12) Model 34(6 x 16)I Model35(9 x 16) Model 54( 8x 24) Model 55(10 x24) IModel 56(12x 24) Model 68(9 x 30)I Model 69(12×39)I Model 70 (15 x 30)IModel 75S (20×30) Model 79 (8 x 36) Model 80(10 x36) Mode81(12x 36) Model 89 (16 x 36) Model 90(20x 36) Model 95 (24 x 36) Model 95S( 29x 36)IModel 104(8 x42)IModel 105(10 x42)Model 106 (12×42) Model 106S (14 x42)|Mode |107 (17 x42) Model 108 (20 x42) Model 110(25x 42) |Model 120 (30 x 42)IModel126(36×42) Model 145 (24 x 48)IModel 150(36×48)| Model 150A(40 x48)|Model 150s (42×48) Model 160 (42×48)| Model 188 (26
x 60) Model 32 x 60| Model 200 (48 x 60)
Kue Ken Rockeater Range:Model 64RE(6 x 30) Model 65RE(8 x 30)I Model 71RE (6×36) Model 660RE (12x 60) Super Rockeater

Item Code	Item Name	Alternative No.	Curve Type	Model	Wt. Lb	Wt. KG
861	Stationary &Moving Jaw Ht: 20″ 2 Req’d	PDD31126	Smooth	Model 22, 3 x 12	130	58.96
9*	Accessories	JKK0312K01	Stationary Keeper Plate		15	6.80
10*		JKK0312K02	Movable Keeper Plate		12	5.44
76*		JKK0312C03	Cheek Plate 2 Req’d		42	19.05
861	Stationary &Moving Jaw Ht: 20″ 2 Req’d	PDD31126	Smooth	Model 24, 5 x 12	130	58.96
9*	Accessories	JKK0512K04	Stationary Keeper Plate		15	6.80
10*		JKK0512K05	Movable Keeper Plate		12	5.44
76*		JKK0512C06	Cheek Plate 2 Req’d		42	19.05
854	Stationary &Moving Jaw Ht: 20″ 2 Req’d	V18128	Non-Rev	Model 25, 7 x 12	123	55.78
76*		JKK0712C04	Cheek Plate 2 Req’d		42	19.05

847	Stationary &Moving Jaw Ht: 27.00″ 2 Req’d	JKK0616J01	R.E.	Model 34, 6 x 16	335	151.92
9*	Accessories	JKK0616K02	Stationary Keeper Plate		20	9.07
10*		JKK0616K03	Movable Keeper Plate		17	7.71
76*		JKK0616C04	Cheek Plate 2 Req’d		60	27.21
		JKK0616J01	JKK0616J01	Applications Model 35, 9 x 16
848A	Stationary &Moving Jaw Ht: 27.25″ 2 Req’d	JKK0916J03		Model 35, 9 x 16
848B	Stationary &Moving Jaw Ht: 27.25″ 2 Req’d	JKK0916J03
1157	Stationary	C10794
1158	Moving	C10794
9*	Accessories	JKK0916K04
10*		JKK0916K05
76*		JKK0916C06

		JKK0916J03	JKK0916J03	Applications (Model 35, 9 x 16)
				Applications (Model 35, 9 x 16)
1564	Stationary &	C7132	Smooth	Model 54, 8 x 24	605	274.37
846	Old Cast	JKK0824J09	Smooth		510	231.29
1562	Accessories	JKK0824K10	Stationary Keeper Plate (See Drg C7133)		45	20.41
1563		JKK0824K11	Movable Keeper Plate (See Drg C7133)		40	18.14
76*		JKK0824C12	Cheek Plate 2 Req’d		56	25.40
77*		JKK0824C13	Top Wear PLate LH		27	12.24
77A		JKK0824C14	Top Wear PLate RH		27	12.24
		JKK0824J09	JKK0824J09	Applications
				Applications
1565	Stationary &	C7131	Smooth	Model 55, 10 x 24	550	249.43
	Moving Jaw	KD21393	Smooth		535	242.62
774	Old Cast	JKK1024J04	Smooth		470	213.15
1562	Accessories	JKK1024K05	Stationary Keeper Plate (See Drg C7133)		45	20.41
1563		JKK1024K06	Movable Keeper Plate (See Drg C7133)		40	18.14
76*		JKK1024C07	Cheek Plate 2 Req’d		56	25.40
77*		JKK1024C08	Wear Plate RH & LH		27	12.24
				Applications
		JKK1024J04	JKK1024J04

1561	Stationary &	JKK1224J06	Non-Rev	Model 56, 12 x 24	535	242.62
885	Old Cast	JKK1224J07	Non-Rev		445	201.81
843T	1 each {	C10277
843E	Req’d {
		C10277	Stationary Keeper Plate (See Drg C7133)		45	20.41
1562	Accessories	JKK1224K10	Stationary Keeper Plate (See Drg C7133)
1563		JKK1224K11	Movable Keeper Plate (See Drg C7133)		40	18.14
76*		JKK1224C12	Cheek Plate 2 Req’d		56	25.40
77*		JKK1224C13	Top Wear PLate LH		27	12.24
77A*		JKK1224C14	Top Wear PLate RH		27	12.24
		JKK1224J06	JKK1224J06	Applications
		JKK1224J07	JKK1224J07
		JKK1224S09	JKK1224M08

1730	Stationary &	64D4775		Model 64RE, 6 x 30 “Rockeater”
	Moving Jaw
9*	Accessories	JKK0630K02	Stationary Keeper Plate		56	25.40
10*		JKK0630K03	Movable Keeper Plate		56	25.40
76*		JKK0630C04	Cheek Plate 2 Req’d		66	29.93
1734	Stationary &	65D4786	Smooth	Model 65RE, 8 x 30 “Rockeater”	362	164.17
8*	Accessories	JKK0830K02	Stationary Keeper Plate		56	25.40
10*		JKK0830K03	Movable Keeper Plate		56	25.40
76*		JKK0830C04	Cheek Plate 2 Req’d		108	48.98
1065	Stationary &Moving Jaw Ht: 35″ 2 Req’d	JKK1230J05	Smooth	Model 68, 9 x 30	870	394.55
Spl.		KB19216	Smooth		825	374.14
957		C7121	Non Rev		750	340.13
Spl.		JKK1530J09	Smooth		1332	604.06
957HD		JKK1530J08	Smooth		900	408.15
		JKK1230J05	JKK1230J05	Applications (Model 68, 9 x 30)
1065	Stationary &Moving Jaws Ht: 35″ 2 Req’d	JKK1230J05	Smooth	Model 69, 12 x 30 Applications	870	394.55
Spl.		JKK0930J02	Smooth		825	374.14
957		C7121	Non-Rev		765	346.93
Spl.		JKK1530J09	Smooth		1332	604.06
957HD		JKK1530J08	Smooth		900	408.15
K3965-B	Accessories	JKK1530K01	Stationary Keeper Plate ( Patt 1014 Drg C7121)		81	36.73
K3965-D		JKK1530K02	Movable Keeper Plate ( Patt 1128 Drg C7121 built after 1949 )		63	28.57
K3965-G		JKK1530C03	Cheek Plate 2 Req’d ( Patt 1013 Drg C7121 )		125	56.69
K3965-E		JKK1530C04	Top Wear PLate LH (Patt 1012L Drg C7121 )		91	41.27
K3965-F		JKK1530C07	Top Wear PLate RH ( Patt 1012R Drg C7121 )		91	41.27
K3965-C		C7121	Movable Keeper Plate ( Patt 958X built before 1949 )		63	28.57
		JKK1230J05	JKK1230J05	Applications
		JKK0930J02	JKK0930J02	Applications
957	Stationary &Moving Jaw Ht: 35″ 2 Req’d	C7121	Non-Rev	Model 70, 15 x 30 Applications Model 71RE, 6 x 36 “Rockeater”	765	346.93
1065		JKK1230J05	Smooth		870	394.55
Spl.		KB19216	Smooth		825	374.14
Spl.		JKK1530J09	Smooth		1332	604.06
957 (HD)		JKK1530J08	Smooth		900	408.15

K3965-B	Accessories	JKK1530K01	Stationary Keeper Plate ( Patt 1014 Drg C7121 )		81	36.73
K3965-D		JKK1530K02	Movable Keeper Plate ( Patt 1128 Drg C7121 Built after 1949 )		63	28.57
K3965-G		JKK1530C03	Cheek Plate 2 Req’d ( patt 1013 Drg C7121 )		125	56.69
K3965-E		JKK1530C04	Top Wear PLate LH ( Patt 1012L Drg C7121 )		91	41.27
K3965-F		JKK1530C07	Top Wear PLate RH ( Patt 1012R Drg C7121 )		91	41.27
K3965-C		C7121	Movable Keeper Plate ( Patt 958X Built before 1949 )		63	28.57
				Applications
		JKK1230J05	JKK1230J05

1905	Stationary &	JKK0636J02	Smooth	Model 71RE, 6 x 36 “Rockeater”	350	158.73
	Moving Jaw	DV1674	Smooth	Model 71RE, 6 x 36 “Rockeater”	390	176.87
		JKK0636J02	JKK0636J02	Applications
	Stationary & Ht: 42.88″	BV1702	Smooth	(Model 71RE, 6 x 36 “Rockeater”)	1260	571.41
2259.00		JKK2030J02	Smooth	(Model 71RE, 6 x 36 “Rockeater”)	1454	659.39
1000	Stationary &Moving Jaw Ht: 32″	JKK0836J03	Smooth	Model 75S, 20 x 30 Model 79, 8 x 36	1110	503.39
1112		JKK0836J04	Smooth		1090	494.32
		KB8913	Smooth		1145	519.26
9*	Accessories	JKK0836K05	Stationary Keeper Plate		144	65.30
10*		JKK0836K06	Movable Keeper Plate		104	47.16
76*		JKK0836C07	Cheek Plate 2 Req’d		105	47.62
77*		JKK0836C08	Top Wear Plate LH		54	24.49
77A*		JKK0836C09	Top Wear PLate RH		54	24.49
		JKK0836J03	JKK0836J03	Applications
1000	Stationary &	JKK0836J03	Smooth	Model 80, 10 x 36	1235	560.07
1112	Moving Jaw	JKK0836J04	Smooth		1090	494.32
9*	Accessories	JKK1036K01	Stationary Keeper Plate		144	65.30
10*		JKK1036K02	Movable Keeper Plate		104	47.16
K4009-E		JKK1036C03	Cheek Plate 2 Req’d		105	47.62
K4009-A		JKK1036C04	Top Wear Plate LH		54	24.49
K4009-B		JKK1036C05	Top Wear PLate RH		54	24.49
		JKK0836J03	JKK0836J03	Applications
		JKK0836J04	JKK0836J04	Applications
1109	Stationary &Moving Jaw Ht: 32″ 2 Req’d	C10271	Non-Rev.	Model 81, 12 x 36	875	396.81
1000		JKK0836J03	Smooth		1235	560.07
1112		JKK0836J04	Smooth		1090	494.32
9*	Accessories	JKK1236K01	Stationary Keeper Plate		144	65.30
10*		JKK1236K02	Movable Keeper Plate		104	47.16
76*		JKK1236C03	Cheek Plate 2 Req’d		105	47.62
77*		JKK1236C04	Top Wear Plate LH		54	24.49
77A*		JKK1236C05	Top Wear Plate RH		54	24.49
		JKK0836J03	JKK0836J03	Applications (Model 81, 12 x 36)
		JKK0836J04	JKK0836J04	Applications (Model 81, 12 x 36)
1123	Stationary &Moving Jaw Ht: 44″ 2 Req’d	JKK1636J03	Smooth	Model 89, 16 x 36	1810	820.84
SPL.		PDE35488	Smooth		1560	707.46
1122		C10279	Non-Rev Tap’d		1220	553.27
SPL.		V10882	Smooth		1426	646.69
2258		C10451	Smooth		1550	702.93
989		JKK2036J01	Non-Rev		1705	773.22
2257		JKK2036J02	Smooth		1586	719.25

9	Accessories	JKK1636K05	Stationary Keeper Plate		46	20.86
9A		JKK1636K06	Stationary Keeper Plate Old Style		180	81.63
10		JKK1636K07	Movable Keeper Plate		92	41.72
76		JKK1636C08	Cheek Plate 2 Req’d		233	105.67
77*		JKK1636C09	Top Wear Plate LH		95	43.08
77A*		JKK1636C10	Top Wear Plate RH		95	43.08
		JKK1636J03	JKK1636J03	Applications
Spl.	Stationary &Moving Jaw Ht: 44″ 2 Req’d	PDE35488	Smooth	Model 90, 20 x 36 Applications	1560	707.46
989		JKK2036J01	Non Rev		1705	773.22
2257		JKK2036J02	Smooth		1586	719.25
1123		JKK1636J03	Smooth		1810	820.84
1122		C10279	N-Rev Tapered		1220	553.27
2258		C10451	Smooth		1550	702.93
Spl.		V10882	Smooth		1426	646.69

K4274-P	Accessories	JKK2036K04	Stationary Keeper Plate		46	20.86
9A*		JKK2036K05	Stationary Keeper Plate Old Style		180	81.63
K4096-A		JKK2036K06	Movable Keeper Plate		92	41.72
K4096-D		JKK2036C07	Cheek Plate 2 Req’d		233	105.67
K4096-B		JKK2036C08	Top Wear Plate RH		95	43.08
K4096-C		JKK2036C09	Top Wear PLate LH		95	43.08
		JKK2036J02	JKK2036J02	Applications
		JKK1636J03	JKK1636J03	Applications
	Stationary &Moving Jaw Ht:53″ 2 Req’d	JKK2436J01	Non-Rev	Model 95, 24 x 36	2150	975.03
		JKK2436J11	Smooth		1741	789.54
		JKK2436J02	Non Rev		2250	1020.38
		KB14829	Smooth		2040	925.14
9*	Accessories	JKK2436K05	Stationary Keeper Plate		46	20.86
10*		JKK2436K06	Movable Keeper Plate		96	43.54
K4135-H		JKK2436C07	Cheek Plate Upper 2 Req’d		180	81.63
K4135-I		JKK2436C08	Cheek Plate Lower 2 Req’d		137	62.13
K4135-D		JKK2436C09	Top Wear Plate RH		146	66.21
K4135-F		JKK2436C10	Top Wear Plate LH		146	66.21
		JKK2436J01	JKK2436J01	Applications (Model 95, 24 x 36)
		JKK2436J11	JKK2436J11
		JKK2436J02	JKK2436J02
	Stationary &Moving Jaw Ht:53″ 2 Req’d	JKK2436J01	Non-Rev	Model 95S, 29 x 36	2140	970.49
		JKK2436J11	Smooth		1741	789.54
		JKK2436J02	Non-Rev		2000	907.00
		KB14829	Smooth		2040	925.14
9*	Accessories	JKK2936K01	Stationary Keeper Plate		46	20.86
10*		JKK2936K02	Movable Keeper Plate		96	43.54
K4135-H		JKK2936C03	Cheek Plate Upper 2 Req’d		180	81.63
K4135-I		JKK2936C04	Cheek Plate Lower 2 Req’d		137	62.13
K4135-D		JKK2936C05	Top Wear Plate RH		146	66.21
K4135-F		JKK2936C06	Top Wear Plate LH		146	66.21
		JKK2436J01	JKK2436J01	Applications
		JKK2436J11	JKK2436J11
		JKK2436J02	JKK2436J02
1445A	Stationary &	C10272	Smooth	Model 104, 8 x 42	1450	657.58
	Moving Jaw	KB16582	Smooth		1580	716.53
9*	Accessories	JKK0842K02	Stationary Keeper Plate		55	24.94
9A*		JKK0842K03	Stationary Keeper Plate Old Style		201	91.15
10*		JKK0842K04	Movable Keeper Plate		126	57.14
76*		JKK0842C05	Cheek Plate 2 Req’d		110	49.89
77A*		JKK0842C06	Top Wear Plate RH		71	32.20
77*		JKK0842C07	Top Wear Plate LH		71	32.20
1445A	Stationary &Moving Jaw Ht:33.13″ 2 Req’d	C10272	Smooth	Model 105, 10 x 42	1450	657.58
		KB16582	Smooth		1580	716.53
1760		JKK1042M07	Cullet Convex		1250	566.88
1759		JKK1042S08	Cullet Concave		1300	589.55
9*	Accessories	JKK1042K01	Stationary Keeper Plate		55	24.94
9A*		JKK1042K02	Stationary Keeper Plate Old Style		201	91.15
10*		JKK1042K05	Movable Keeper Plate		126	57.14
76*		JKK1024C03	Cheek Plate 2 Req’d		110	49.89
77A*		JKK1042C04	Top Wear Plate RH		71	32.20
77*		JKK1042C06	Top Wear Plate LH		71	32.20
1444	Stationary &	PDE43910	Non Rev	Model 106, 12 x 42 & Model 106S, 14 x 42	1400	634.90
	Moving Jaw	KB16582	Smooth		1580	716.53
9*	Accessories	JKK1242K02	Stationary Keeper Plate		55	24.94
9A*		JKK1242K03	Stationary Keeper Plate Old Style		201	91.15
10*		JKK1242K04	Movable Keeper Plate		126	57.14
76*		JKK1242C05	Cheek Plate 2 Req’d		110	49.89
77A*		JKK1242C06	Top Wear Plate RH		71	32.20
77*		JKK1242C07	Top Wear PLate LH		71	32.20
2050	Stationary &Moving Jaw Ht:47.38″ 2 Req’d	C7415	Smooth	Model 107, 17 x 42	2250	1020.38
Spl.		JKK1742J07	Smooth		2790	1265.27
2051		C7415	Non Rev		1740	789.09
Spl		JKK1742J10	Smooth		3000	1360.50
		DV3884	Smooth		3150	1428.53
9*	Accessories	JKK1742K01	Stationary Keeper Plate		55	24.94
9A*		JKK1742K02	Stationary Keeper Plate Old Style		210	95.24
10		JKK1742K03	Movable Keeper Plate		55	24.94
76U*		JKK1742C04	Cheek Plate Upper		150	68.03
76L		JKK1742C05	Cheek Plate Lower		90	40.82
77*		JKK1742C06	Top Wear Plate LH		80	36.28
77A*		JKK1742C09	Top Wear Plate RH		80	36.28
		JKK1742J07	JKK1742J07	Applications (Model 107, 17 x 42)
		JKK1742J10	JKK1742J10	Applications (Model 107, 17 x 42)
2051	Stationary &Moving Jaw Ht:47.38″ 2 Req’d	C7415	1740	Model 108, 20 x 42
2050		C7415	2250
Spl.		JKK1742J07	2460
9*	Accessories	JKK2042K01	55
9A*		JKK2042K02	201
10		JKK2042K03	55
76U*		JKK2042C04	150
76L		JKK2042C05	90
77A*		JKK2042C06	80
77*		JKK2042C07	80
		JKK1742J07	JKK1742J07	Applications
ESCO spl.	Stationary &Moving Jaw Ht:55.25″ 2 Req’d	JKK2542J03	Smooth	Model 110, 25 x 42, Model 110S, 27 x 42 & Model 110S, 30 x 42	2660	1206.31
		PDE42735	Non Rev		2398	1087.49
972		C7128	Non Rev		2215	1004.50
		KD14445	Smooth		2290	1038.52
1551		C7400	Smooth		2766	1254.38
972 Spl		C10391	Non-Rev		2105	954.62
		JKK2542J15	Smooth		2812	1275.24
1551-C		C11118	Smooth		2766	1254.38
9*	Accessories	JKK2542K06	Stationary Keeper Plate		55	24.94
9A*		JKK2542K07	Stationary Keeper Plate Old Style		201	91.15
10*		JKK2542K08	Movable Keeper Plate		122	55.33
K4061D		JKK2542C09	Cheek Plate Upper 2 Req’d (See Dwg C11818)		192	87.07
K4061E		JKK2542C10	Cheek Plate Lower 2 Req’d (See Dwg C11819)		140	63.49
77A*		JKK2542C11	Top Wear Plate RH		131	59.41
77*		JKK2542C13	Top Wear Plate LH		131	59.41
K7882-A		V15117	Moving Keeper plate model 110X – No engineering		60	27.21
K4685-P		V15117	Stationary Keeper plate Model 110X No engineering
	Model 110 25″ x 42″		JKK2542J03	Applications
	Model 110S 27″ x 42″		JKK2542J03
	Model 110S S 30″ x 42″		JKK2542J03
1368	Stationary &Moving Jaw Ht:66″ 2 Req’d		3430	Model 120, 30 x 42 & Model 120S, 36 x 42 Applications Model 126, 36 x 42
Esco Spl.			3870


9*	Accessories		55
9A*			201
10*			122
76*			270
76A			267
77*			236
77A			236
	Model 120	JKK3042J09	JKK3042J09
	30″ x 42″
	Model 120S	JKK3042J09	JKK3042J09
	36″ x 42″
2069A	Stationary &Moving Jaw Ht:86″ 2 Req’d	C7289	3400	Model 126, 36 x 42
2077		C7288	4050
Spl		EV3716	3930
9*	Accessories	JKK3642K01	55
10*		JKK3642K02	55
76U*		JKK3642C03	557
76L*		JKK3642C04	408
77A*		JKK3642C05	276
77*		JKK3642C06	276
		JKK3642J07	JKK3642J07	Applications (Model 126, 36 x 42)
2264	Stationary &Moving Jaw Ht: 66.38″ 2 Pcs per Side 4 Req’d Mach	C7358	Smooth	Model 145, 24 x 48	1850	838.98
Spl.	Stationary &	JKK2448J01	Smooth		4040	1832.14
	Moving Jaw	JKK2448J02	Smooth		4300	1950.05
Hi-Life on one	Ht: 66.38″	V17057	Smooth		4110	1863.89
end only	1 Req’d
	Side
	2 Req’d
	Mach
2265	Jaw Wedges	Ref	2 Req’d per Side		100	45.35
	2 Req’d

2268R	Cheek Plate	Ref	Upper RH		303	137.41
2268L		Ref	Upper LH		303	137.41
2267		Ref	Middle 2 Req’d		262	118.82
2266		C7358	Lower 2 Req’d		290	131.52
		Ref	20 Sq HD Bolts 1.25″ x 5″ w/Nut & Lockwasher
1470	Stationary Upper 43.50″	JKK3648S05	1230	Model 150, 36 x 48, Model 150A, 40 x 48 Model 150S, 42 x 48
1627	2 Pc Set	C7126	1290
1507		C7135	1400
Spl.	1 Pc Side Moving Upper Ht: 47.75″	PDE42970	2550
Spl.	1 Pc Side	PDE42962	2840
1508		C7135	2500
1628	2 Pc Set	JKK3648M01	1400

1625	2 Pc Set	JKK3648M06	1360
1509	Stationary Lower or Moving Lower Jaws Ht: 39.38″	C7135	1500
1541	2 Pc Side	C7126	1305
1548	1 Pc Side	C13780	2640
Spl.	1 Pc Side	EV3659	2360
Spl.		V13879	2695
7A*	Accessories	JKK3648K07	182
9*		JKK3648K08	180
9A*		JKK3648K09	182
76U*		JKK3648C10	516
76L*		JKK3648C11	437
77RF*		JKK3648C12	346
77LF*		JKK3648C13	334
77RR*		JKK3648C14	346
77LR*		JKK3648C15	334
1629	Stationary Upper Ht: 55.88″ 2 Pc Set Split Vertically	JKK4248S01	1650	Model 160, 42 x 48
1630		JKK4248M02	1860
	Upper Ht: 62.25″ 2 Pc Set Split Vertically
1631	Moving	C10270	2140
	Upper
	Ht: 70.75″
	Fits curved
	swing frame
	only
	Stationary
	Low or Mov
	Jaw
	Ht: 39.38″
1541	(2 Pc / Side)	C7126	1305
	Split
	Vertically
1548	(1Pc / Side)	PDE42978	2650
Spl.	(1Pc / Side)	EV3659	2360

9*	Accessories	JKK4248K03	178
76U*		JKK4248C04	735
76L*		JKK4248C05	485
77RF*		JKK4248C06	412
77RR*		JKK4248C07	270
77LF*		JKK4248C08	412
77LR*		JKK4248C09	270
99*		JKK4248B10	2

		JKK4248S01	JKK4248M02	Applications (Model 160, 42 x 48)
1948	Stationary &	JKK1260J02	Non-Rev	Model 660RE, 12 x 60 “Super Rockeater”	450	204.08
1949	Moving Jaw Ht: 26″ 4 Req’d	C7144	R.E.		516	234.01
9*	Accessories	JKK1260K03	Stationary Keeper Plate		56	25.40
10*		JKK1260K04	Movable Keeper Plate		56	25.40
76*		JKK1260C05	Cheek Plate 2 Req’d		108	48.98
		JKK1260J02	JKK1260J02	Applications
2300	Stationary or	C10273	Smooth	Model 188, 26 x 60 (Jaw also fits 20 x 60, 28 x 60, 36 x 60)	2230	1011.31
	Moving Jaw
	Ht: 58″	C10319	R.E.		2400	1088.40
	2 Req’d /
	Side
	4 Req’d /
	M/C
	1 Req’d /	C10318	R.E.		4205	1906.97
	Side
	2 Req’d /
	M/C
X1644(AMSCO)	Stationary &	PDD33679	Non Rev	Model 32 x 60	2441	1106.99
	Moving Jaw
	Ht: 57.75″
	2 Req’d
	2 Piece	EV3302	Straight	Model 200, 48 x 60	2160	979.56
1788	Stationary or Moving Upper Jaw Ht: 49.75″	C7399	Straight		2230	1011.31
	1 Piece	EV3312	Straight		3980	1804.93
1901	Stationary or Moving Upper Jaw	Ref	Straight
	2 Piece	JKK4860J02	R.E.		2440	1106.54
1789	Stationary or Moving Lower Jaw Ht: 51″	C7399	R.E.		2670	1210.85
	1 Piece	EV3311	R.E.		4550	2063.43
	Stationary or Moving Lower Jaw Ht: 51″	EV3425	R.E. Hi-Life		4900	2222.15
1793	Stationary or Moving Lower Jaw Ht: 51″	C7398	R.E.		5500	2494.25

JAW CRUSHER

CONE CRUSHER

GYRATORY CRUSHERS

HSI IMPACT CRUSHER:

VSI CRUSHERS

MOBILE CRUSHING

Kue-Ken Jaw Plates

Kue-Ken Jaw Plates

Description

Related Products Recommendation

JAW CRUSHER

CONE CRUSHER

GYRATORY CRUSHERS

HSI IMPACT CRUSHER:

VSI CRUSHERS

MOBILE CRUSHING

Kue-Ken Jaw Plates

Kue-Ken Jaw Plates

Description​

Related Products Recommendation

Description
