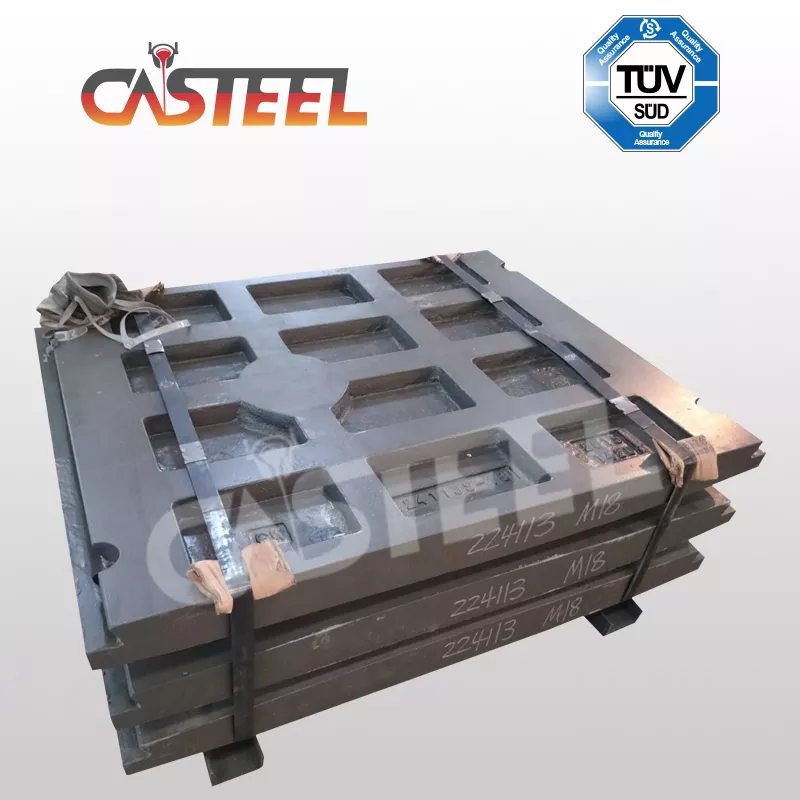

KPI-JCI Pioneer Jaw Plates

KPI-JCI Pioneer Jaw Plates

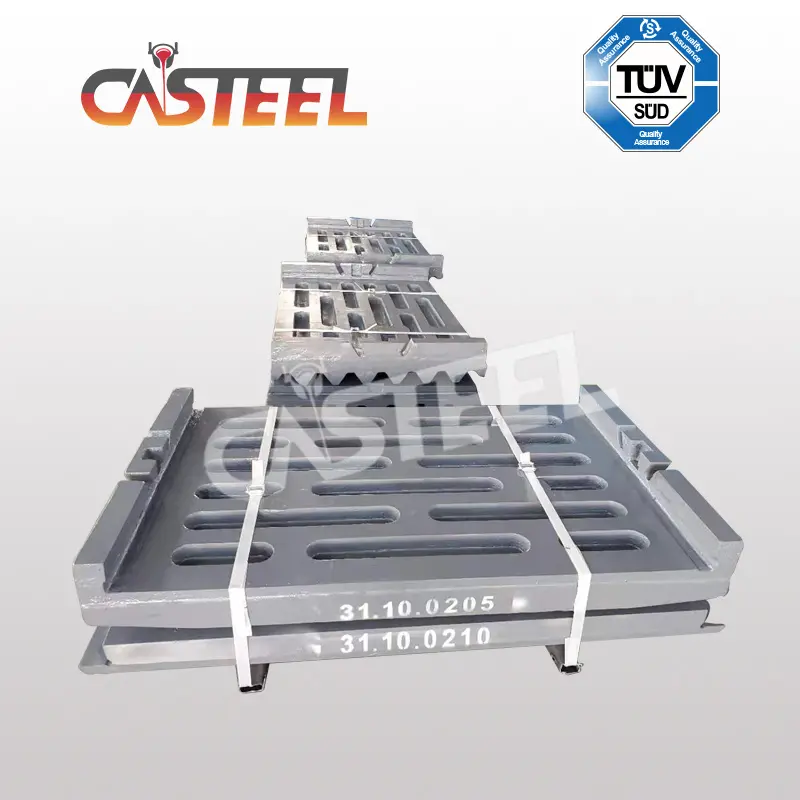

KPI-JCI Pioneer Jaw Plates - Image 2

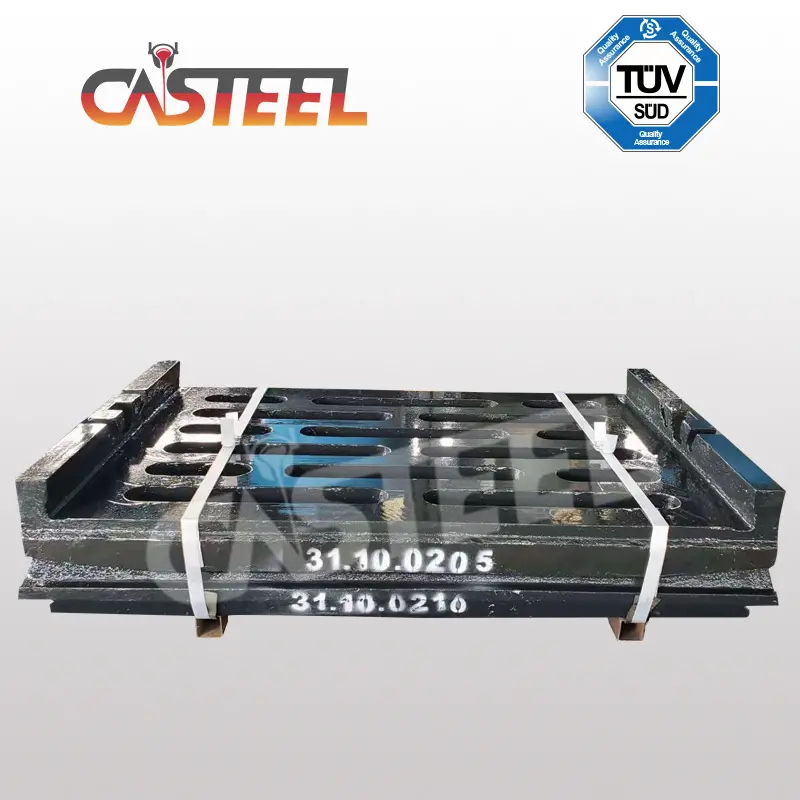

KPI-JCI Pioneer Jaw Plates - Image 3

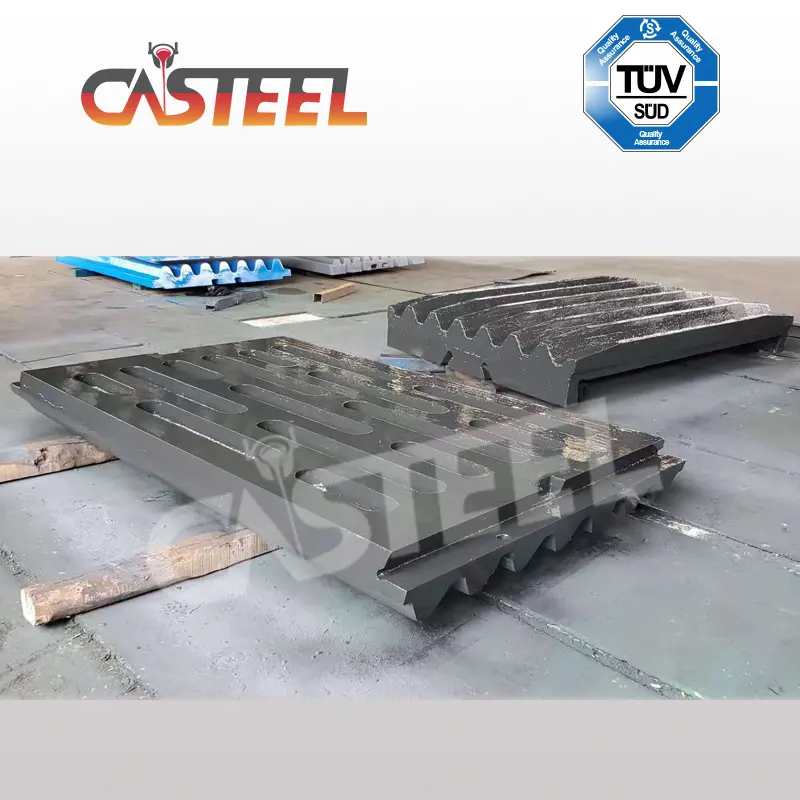

KPI-JCI Pioneer Jaw Plates - Image 4

KPI-JCI Pioneer Jaw Plates

Jaw Crusher Wear Parts :

Item Names: Jaw Plates,Stationary Jaw Tooth, Movable Jaw Die Fixed Jaw, Swing Jaw Plate,
Jaw Fixed, Jaw Moveable ,Cheek Plate ,Side Plate,Jawface Fixed,Crusher Jaw Loose

Casting Material: Austenstic Manganese Steel (Mn14, M14Cr2,Mn18Cr2, Mn22Cr2)

Casting Method: Water Glass Sand Casting

Applicable Material:Gravel, Granite, Basalt, Ore, Limestone,Sandstone ,Quatz,Cobblestone

Applications: Mining , Quarry, Construction ,Cement and Materials,Recycling

Contact Us

Description​

CASTEEL Foundry has long understanding and coverage Nordberg C Series jaw crushers match with following models:
C Series Jaw Long Range : C110 |C120 |C130 |C140 |C150

Part No Item Name Item No. Curve Type Tooth Type Model Wt.lb Wt.KG
C684 Stationary Jaw Ht: 22.50″ KD7888 Smooth Sharp 10 x 16 220 99.77
C685 Moving Jaw Ht: 25″ KB10953 R.E. Sharp 190 86.17
C-345 Stationary Jaw Ht: 22″ JPI1020S02 R.E. Sharp 10 x 20 Welded Base & Cast Base 283 128.34
C-344 Moving Jaw Ht: 26″ KB10957 R.E. Sharp 280 126.98
Stationary Jaw Ht: 22.50″ KD16175 Smooth P.M. 10 x 24 Welded Base Roller Bearing 325 147.39
C-497 KB10958 Smooth Sharp 325 147.39
Moving Jaw Ht: 27″ KD16176 Smooth P.M. 420 190.47
C-496 KD4578 Smooth Sharp 370 167.8
C-478 Cheek Plate JPI1036C12 Cheek Plate RH 42 19.05
C-479 JPI1036C13 Cheek Plate LH 42 19.05
C-492 JPI1036C14 Heel Plate RH 36 16.33
C-493 JPI1036C15 Heel Plate LH 36 16.33
C-779 KA31965 Key Plate RH 50 22.68
C-780 KA31965 Key Plate LH 50 22.68
C-780 KA31965 Key Plate LH 50 22.68
CP-18533 JPI2436B35 1 x 10 Bolt Assembly w/ Hex Nuts and Flat Washer 6 2.72
C-177 Toggle Parts JPI0824T10 Pitman Seat 30 13.61
C-585 KB10851 Toggle Plate 13 1/2 120 54.42
C-471 KB10851 Toggle Plate 14 1/2 140 63.49
C-00649 Stationary Jaw Ht: 32″ KD8807 Straight Sharp 15 x 24 Welded Base, Roller Bearing 525 238.09
DV3590 R.E. P.M. II 650 294.78
C-00653 Moving Jaw Ht: 36″ KD8808 Straight Sharp 650 294.78
DV3591 R.E. P.M. II 800 362.8
C913 (C-00913) Wedges Ref 38 17.23
C-00937 Cheek Plate Ref RH Key Plate 67 30.38
C-00938 Ref LH Key Plate 67 30.38
C-00935 Ref RH Heel Plate Cast 62 28.12
C-00936 Ref LH Heel Plate Cast 62 28.12
WSC00935 Ref RH Heel Plate Fab
WSC00936 Ref LH Heel Plate Fab
C-00177 Toggle Parts JPI0824T10 Pitman Seat 30 13.61
C-00233 KB10855 19″ x 20.50 “S” Curve Cast Iron Plate 200 90.7
C-00217 KB10855 20″ x 20.50 “S” Curve Cast Iron Plate 215 97.5
C-00193 Stationary Jaw Ht:30″ KD8828 Smooth Sharp 15 x 24 Cast Base, Plain Bearing 480 217.68
C-00194 Ref Straight Sharp 445 201.81
C-00192 Moving Jaw Ht:30″ KD8620 Smooth Sharp 520 235.82
C-00195 Ref Straight Sharp 445 201.81
C-00216 Wedges Ref Stationary 25 11.34
C-00215 Ref Moving 40 18.14
C-00129 Cheek Plate Ref Upper RH 82 37.19
C-00130 Ref Upper LH 82 37.19
C-00131 Ref Lower RH 35 15.87
C-00132 Ref Lower LH 35 15.87
C-00177 Toggle Plate JPI0824T10 Pitman Seat 30 13.61
Stationary Jaw Ht: 22″ JPI1030S01 Smooth P.M. 10 x 30 Plain Bearing Cast Base 505 229.02
C-00350 PB4778 R.E. Sharp 420 190.47
C-00510 PB7635 Smooth Sharp 375 170.06
Moving Jaw Ht: 26″ JPI1030M02 Smooth Spl P.M. 520 235.82
C-00349 PB4777 R.E. Sharp 425 192.74
C-00511 PB7636 Straight Sharp 405 183.67
C-00355 Pitman Seat PB4786 44 19.95
C-00357 Toggle Parts PB4790 160 72.56
C-00358 Ref 170 77.1
C-00359 Ref 175 79.36
C-00360 Ref 190 86.17
Stationary Jaw Ht: 35″ JPI1830S02 Straight P.M. 18 x 30 Roller Bearing Welded Base 830 376.41
C-00941 Ref R.E. Rounded 724 328.33
Moving Jaw Ht: 38″ JPI1830M01 Smooth P.M. 1020 462.57
C-00940 Ref R.E. Rounded 860 390.01
C-00886 Cheek Plate JPI2036C11 Heel Plate LH 120 54.42
C-00887 JPI2036C12 Heel Plate RH 120 54.42
C-00947 Ref Key Plate RH 111 50.34
C-00946 Ref Key Plate RH 111 50.34
Stationary Jaw JPI1830S02 P.M. Applications
Moving Jaw JPI1830M01 P.M.
C-00111 Stationary Jaw Ht: 18.25″ KD7584 Smooth Sharp 8 x 36 370 167.8
C-00386 Stationary Jaw Ht: 19.50″ KD7584 Smooth Sharp 395 179.13
C-00112 Moving Jaw Ht: 20.75″ KD8402 Smooth Sharp 315 142.85
C-00096 Toggle Parts KB10857 33.50″ Length Rocker Type Pittman Seat 33.50”Length Rocker Type Pittman Seat 50 22.68
C-00374 KB13949 14.50″ x 32.50″ Length “S” Curve Cast Iron Plate 14.50”x32.50”Length ”S”Curve Cast Iron Plate 183 82.99
C-00156HD Stationary Jaw Ht: 21″ KD8436 Smooth Sharp 9 x 36 455 206.34
V14735-02 R.E. PM 674 305.66
C-00157 Moving Jaw Ht: 26″ KD8707 Smooth Sharp 495 224.48
V14735-01 Smooth PM 695 315.18
C-00096 Toggle Parts KB10857 33.50” Rocker Type Pittman Seat 50 22.68
C-00374 Toggle Parts KB13949 14.50”x32.50””S”Curve Cast Iron Plate 183 82.99
Stationary Jaw Ht: 22″ JPI1036S03 Smooth P.M. 10 x 36 Roller Bearing Welded Base 630 285.71
Stationary Jaw Ht: 22″ PDD26106 Smooth Hi-Life 575 260.76
C-00587HD Stationary Jaw Ht: 22″ JPI1036S01 Smooth Sharp 623 282.53
Stationary Jaw Ht: 22″ KB14089 Smooth None 820 371.87
Stationary Jaw Ht: 22″ JPI1036S25 Smooth P.M. SE 700 317.45
Moving Jaw Ht: 26″ KD17295 Smooth P.M. 735 333.32
Moving Jaw Ht: 26″ JPI1036M08 Smooth P.M. 660 299.31
Moving Jaw Ht: 26″ KD11557 Smooth P.M. 570 258.5
Moving Jaw Ht: 26″ KD8163 Smooth Sharp 580 263.03
C-00588 Moving Jaw Ht: 26″ JPI1036M05 Smooth Sharp 530 240.36
Moving Jaw Ht: 26″ KB14090 Concave None 775 351.46
Moving Jaw Ht: 26″ JPI1036M26 Smooth P.M. SE 745 337.86
C-010601 Stationary Jaw Ref R.E. Sharp 620 281.17
C-01061 Moving Jaw Ref R.E. Sharp 630 285.71
C-00589 Ref Straight Sharp 580 263.03
C-00914 Wedges JPI1036W11 35.63″ Length Smooth Face Move Jaw 47 21.31
C-00479 Cheek Plate JPI1036C13 LH Key Plate 24 Lg for Crusher w/Serial No. Prior To C-260 42 19.05
C-00478 JPI1036C12 RH Key Plate 24 Lg for Crusher w/Serial No. Prior To C-260 42 19.05
C-00493 JPI1036C15 LH Heel Plate 28″ Lg for Crusher w/Serial No. After C416 36 16.33
C-00492 JPI1036C14 RH Heel Plate 28″ Lg For Crusher w/Serial No. After C416 37.8 17.14
C-00780 KA31965 Left Hand Heel Plate 27″ Long 50 22.68
C-00779 KA31965 Right Hand Heel Plate 27″ Long 50 22.68
C-00861 Drawing Left Hand Key Plate 28 12.7
C-00862 Drawing Right Hand Key Plate 28 12.7
C-00457 Ref LH Heel Plate For Crushers w/Serial No. C620 Thru C416
C-00458 Ref RH Heel Plate For Crushers w/Serial No. C260 Thru C416
C-00900 Toggle Parts JPI1036T17 32″ Length Triangular Shape w/ 2 Ears Pitman Seat 58 26.3
C-00627 KD8773 32″ Length Triangular Shape Pitman Seat Use JPI1036T17 55 24.94
C-00624 JPI1036T18 15″ x 32″ “S” Curve Cast Iron Plate 193 87.53
C-00625 JPI1036T19 16″ x 32″ “S” Curve Cast Iron Plate 206 93.42
C-00626 JPI1036T20 17″ x 32″ “S” Curve Cast Iron Plate 225 102.04
C-00733 JPI1036T21 18″ x 32″ “S” Curve Cast Iron Plate 228 103.4
VCOA9131 19″ x 32″ “S” Curve Cast Iron Plate 255 115.64
C-00969 JPI1536T28 32″ Length Rocker Type Pitman Seat 110 49.89
C-01022 Ref 18″ x 32″ Rocker Type Plate 300 136.05
C-01023 JPI1036T24 19″ x 32″ Rocker Type Plate 330 149.66
C-01024 KD25348 20″ x 32″ Rocker Type Plate 385 174.6
Stationary Jaw JPI1036S03 P.M. Applications (10 x 36 Roller Bearing Welded Base)
JPI1036S01 Sharp
JPI1036S01 Sharp
Moving Jaw JPI1036M08 P.M.
JPI1036M06 Sharp
JPI1036M05 Sharp
JPI1336S05 Straight P.M. 970 439.9
JPI1336S01 Smooth P.M. 459.78 459.78
DV31666 Smooth P.M. 507.92 507.92
Stationary Jaw

Ht:35″

 KD25309 Smooth Hi-Life 13×36
Roller
Bearing
Welded Base		 1120 507.92
KB3966 Smooth Sharp 1110 503.39
C-00959 KD18969 R.E. Sharp 935 424.02
C-00822 KB13884 R.E. Rounded 850 385.48
C-01108 KD17529 Straight Rounded 900 408.15
V8915-1 Straight PM S-Brk 1035 469.37
JPI1336S22 Smooth P.M.SE 1217 551.91
Moving Jaw

Ht:39.25″

 JPI1336M12 Smooth P.M. 1385
PDD28650 Smooth Hi-Life 1550 702.93
C-00823 KB13885 R.E. Rounded 1070 485.25
KB3965 Smooth Sharp 1300 589.55
C-01106 KD17530 R.E. Round   PS 1080 489.78
C-00960 KD18963 R.E. Round 1130 512.46
JPI1336M21 Smooth P.M.SE 1450 657.58
C-00911 Wedges JPI1336W14 35.88″Length Mov Jaw Wedge HD 70 31.75
AA-21067 JPI1336W23 35.88″Length Mov Jaw Clamp 39 17.69
CP-5002 JPI2854B04 1″x15″Bolts 5 Req’d
Cheek Plate JPI1336C16 Left Hand 42.50″Height*Key Plate 120 54.42
JPI1336C15 Right Hand 42.50″Height*Key Plate 120 54.42
*Special:2 added to top&bottom for more frame protection
AEP-4282 Ref Left Hand Heel Plate
AEP-4281 Ref Right Hand Heel Plate
AEP-4280 KA38968 Left Hand 38.50″Height(Replaced by

JPI1336C16)Key Plate

 108 48.98
AEP-4279 KA38968 Right Hand 38.50″Height (Replaced by

JPI1336C15)Key Plate

 108 48.98
C-01150 Ref Key Plate
C-01151 Ref Key Plate
GP25984 JPI2436B36 1″x 10.50″Bolts 6 2.72
C-00969 Toggle Parts JPI1536T28 32″Length Rocker Type Pitman Seat 110 49.89
AEP-4283 Ref Adjustable Seat
C-01022 V12788 18″×32″Rocker Type Plate 300 136.05
C-01023 JPI1036T24 19″×32″Rocker Type Plate 330 149.66
C-01024 KD25348 20″×32″Rocker Type Plate 385 174.60
Stationary Jaw JPI1336S01 “P.M.” Applications
(13×36

Roller
Bearing

Welded Base)
JPI1336S05 “P.M.”
Moving Jaw JPI1336M12 “P.M.”
JPI1336M12 “P.M.”
Stationary Jaw

Ht:30″
Held by

 JDI1536S04 Smooth P.M. 15×36 Cast
Base,Plain
Bearing		 835 378.67
JDI1536S03 Straight P.M. 720 326.52
C-00141 KB1688 Smooth Sharp 700 317.45
Wedge
Moving Jaw

Ht:33″

 JDI1536M06 Smooth P.M. 925 419.49
C-00139HD KD8879 Smooth Sharp 869 394.09
C-00142HD KD8239 Smooth Sharp 750 340.13
C-00143HD KD8884 R.E. Sharp 740 335.59
C-00130 Cheek Plate Ref Left Hand Upper Plate 82 37.19
C-00129 Ref Right Hand Upper Plate 82 37.19
C-00132 Ref Left Hand Lower Plate 35 15.87
C-00131 Ref Right Hand Lower Plate 35 15.87
C-00403 Toggle Parts KB13974 16″×27″”S”Curve Cast Iron Plate 224 101.58
C-00421 KB13974 17″×27″”S”Curve Cast Iron Plate 215 97.50
C-00238 KB13974 18″×27″”S”Curve Cast Iron Plate 230 104.31
C-00232 KB13974 19″×27″”S”Curve Cast Iron Plate 266 120.63
C-00124 KB13974 20″x27″”S”Curve Cast Iron Plate 282 127.89
C-00151 KB13974 21″x27″”S”Curve Cast Iron Plate 322 146.03
C-00152 KB13974 22″x27″”S”Curve Cast Iron Plate 370 167.80
Spl JPI1536T30 38.31″Long Toggle Seat -side stops takes
32″wide Tog Pl max		 336 152.38
C1064 JPI1536T31 38.31″Long Toggle Seat-no side stop 336 152.38
C-00969 JPI1536T28 32″Long Rocker Type Pitman Seat 110 49.89
Stationary Jaw JDI1536S04 P.M. Applications
JDI1536S03 P.M.
Moving Jaw JDI1536M06 P.M.
JDI1536M06 P.M.
Stationary Jaw

Ht:35″

 JPI1336S05 Straight P.M.  15×36
Welded Base,

Roller
Bearing

 960 435.36
JPI1336S01 Smooth P.M. 1000 453.50
DV3166 Smooth P.M. 1120 507.92
KD25309 Smooth Hi-Life 1100 498.85
JPI1336S02 Smooth Sharp 1110 503.39
C-00959 KD18969 R.E. Sharp 935 424.02
C-00822 KB13884 R.E. Rounded 850 385.48
C-01213 Ref Sharp 1200 544.20
JPI1536S02 Smooth P.M. 1030 467.11
JPI1336S22 Smooth P.M.SE 1207 547.37
Moving Jaw

Ht:39.25″

 JPI1336M12 Smooth P.M. 1225 555.54
PDD28650 Smooth Hi-Life 1377 624.47
KB3965 Smooth Sharp 1300 589.55
C-00823 KB13885 R.E. Rounded 1050 476.18
C-01214 Ref Sharp 1325 600.89
JPI1336M21 Smooth P.M.SE 1485 673.45
Stationary Jaw JPI1336S05 P.M. Applications
JPI1336S01 P.M.
JPI1536S02 P.M.
Moving Jaw JPI1336M12 P.M.
JPI1336M12 P.M.
JPI1336M12 P.M.
Stationary Jaw

Ht:35″

 JPI1336S05 Straight P.M.  18×36
Welded Base,

Roller
Bearing

 960 435.36
JPI1336S01 Smooth P.M. 1000 453.50
DV3166 Smooth P.M. 1120 507.92
KD25309 Smooth Hi-Life 1100 498.85
JPI1336S02 Smooth Sharp 1110 503.39
C-00959 KD18969 R.E. Sharp 935 424.02
C-00822 KB13884 R.E. Rounded 850 385.48
C-01213 Ref Sharp 1200 544.20
JPI1336S22 Smooth P.M.SE 1207 547.37
Moving Jaw

Ht:39.25″

 JPI1336M12 Smooth P.M. 1225 555.54
PDD28650 Smooth Hi-Life 1377 624.47
KB3965 Smooth Sharp 1300 589.55
C-00823 KB13885 R.E. Rounded 1050 476.18
C-01214 Ref Sharp 1325 600.89
JPI1336M21 Smooth P.M. 1485 673.45
Stationary Jaw JPI1336S05 P.M. Applications
JPI1336S01 P.M.
Moving Jaw JPI1336M12 P.M.
JPI1336M12 P.M.
Stationary Jaw

Ht:35″

 JPI1336S05 Straight P.M.  20×36
Welded Base,

Roller
Bearing

 960 435.36
JPI1336S01 Smooth P.M. 1080 489.78
KD25309 Smooth Hi-Life 1100 498.85
JPI1336S02 Smooth Sharp 1110 503.39
C-00959 KD18969 R.E. Sharp 935 424.02
C-00822 KB13884 R.E. Rounded 850 385.48
C-01213 Ref Sharp 1200 544.20
JPI1336S22 Smooth P.M.SE 1207 547.37
Moving Jaw

Ht:39.25″

 JPI1336M12 Smooth P.M. 1225 555.54
PDD28650 Smooth Hi-Life 1377 624.47
KB3965 Smooth Sharp 1300 589.55
C-00823 KB13885 R.E. Rounded 1050 476.18
JPI1336M21 Smooth P.M.SE 1485 673.45
Stationary Jaw JPI1336S05 P.M. Applications
JPI1336S01 P.M.
Moving Jaw JPI1336M12 P.M.
JPI1336M12 P.M.
C-00911 Wedges JPI1336W14 35.88″Length Smooth Face Moving Jaw

Accessories
(15×36,18

x   36,20×36

Welded Base
Roller
Bearing)

 70 31.75
C-00675 Cheek Plate JPI2036C03 Right Hand Heel Plate }Fits Crusher Base

Frame    CW688

 96 43.54
C-00676 JPI2036C04 Left Hand Heel Plate }Fits Crusher Base

Frame    CW688

 97 43.99
C-00677 JPI2036C05 RH Upper Key Plate}Fits Crusher Base

Frame   CW688

 66 29.93
C-00678 JPI2036C06 LH Upper Key Plate}Fits Crusher Base

Frame   CW688

 63 28.57
C-00745 JPI2036C07 RH Lower Key Plate }Fits Crusher Base

Frame   CW688

 54 24.49
C-00746 JPI2036C08 LH Lower Key Plate }Fits Crusher Base

Frame    CW688

 53 24.04
C-00743 Ref RH Lower Key Plate}Fits Crusher Base

Frame    CW692
C-00744 Ref LH Lower Key Plate }Fits Crusher Base

Frame    CW692
C-00884 JPI2036C09 Left Hand Key Plate 130 58.96
C-00885 JPI2036C10 Right Hand Key Plate 130 58.96
C-00886 JPI2036C11 Left Hand Heel Plate 110 49.89
C-00887 JPI2036C12 Right Hand Heel Plate 110 49.89
Note:Cheek plates C-00888 and C-00889 fit machines with serial numbers starting with letters KKNP
C-00888 Cheek Plate JPI1536C06 Left Hand Key Plate 82 37.19
C-00889 JPI1536C07 Right Hand Key Plate 82 37.19
C-00886 JPI2036C11 Left Hand Heel Plate 120 54.42
C-00887 JPI2036C12 Right Hand Heel Plate 120 54.42
C-00501 Toggle Parts JPI1536T09 32″Length Triangular Shape w/ear Pitman

Seat

 78 35.37
(Fits machines w/serial number G-430 and

later)
C-00470 JPI1536T08 27.75″Length Triangular Shape wl ear

Pitman Seat

 54 24.49
(Fits machines prior to No.G-430)
C-00532 JPI1536T19 17″×32″”S”Curve Cast Iron Plate 318 144.21
C-00553 JPI1536T20 18″×32″”S”Curve Cast Iron Plate 335 151.92
C-00531 JPI1536T21 19″×32″”S”Curve Cast Iron Plate 347 157.36
C-00570 JPl1536T22 20″×32″”S”Curve Cast Iron Plate 383 173.69
C-00530 JPI1536T23 21″x32″”S”Curve Cast Iron Plate 387 175.50
C-00905 JPI1536T24 22″×32″”S”Curve Cast Iron Plate 393 178.23
Note:Following Rocker Type Toggle Parts fit 15″,18″&20×36 Late Model
C-00969 JPI1536T28 32″Long Rocker Type Pitman Seat 110 49.89
L02684 KB17188 59.63″Rocker Type Frame Seat 160 72.56
CPEP-5554 KB8710 18″×32″Rocker Type Plate}

(C-1022)

 304 137.86
CPEP-5555 JPI1536T16 19″×32″Rocker Type Plate}Fabricated

Parts In M.S. (C-1023)

 310 140.59
CPEP-5556 JPI1536T17 20″×32″Rocker Type Plate}Alternate

To Cast Iron (C-1024)

 316 143.31
CPEP-5557 JPI1536T18 21″×32″Rocker Type Plate}

Equivalents.
(C-1025)

 320 145.12
C-1022 Ref 18″x32″Rocker Type Plate Cast Iron 300 136.05
C-1023 JPI1036T24 19″x32″Rocker Type Plate Cast Iron 330 149.66
C-1024 KD25348 20″x32″Rocker Type Plate,Cast Iron 385 174.60
C-1025 Ref 21″×32″Rocker Type Plate,Cast Iron 420 190.47
Stationary Jaw

Ht:40″

 JPI2036S01 R.E. P.M. 20×36    Long

Jaw

 1310 594.09
C-01071 Ref 1500 680.25
VCEA8374 R.E. PM Hi-Life 1355 614.49
JPI2036S15 R.E. P.M.SE 1497 678.89
Moving Jaw

Ht:44.25″

 JPI2036M02 Smooth P.M. 1600 725.60
C-01070 Ref 1625 736.94
V15554 Smooth PM Hi-Life 1705 773.22
JPI2036M14 Smooth P.M.SE 1860 843.51
C-00911 Wedges JPI1336W14 35.88″Length Smooth Face Moving Jaw 70 31.75
C-01067 Cheek Plate Ref Left Hand Plate 153 69.39
C-01068 Ref Right Hand Plate 153 69.39
C-01066 Ref Heel Plate 125 56.69
C-01065 Ref Heel Plate 125 56.69
WSC-01066 Ref Heel Plate
WSC-010 Ref Heel Plate
C-00969 Toggle Parts JPI1536T28 32″Long Rocker Type Pitman Seat 110 49.89
L-2684 KB17188 59.63″Length Frame Seat -Rocker Type 160 72.56
Note:This crusher uses only a 20″long straight Rocker Type toggle
plate.Adjustment accomplished by shims and hydraulic pump.
C1024 KD25348 20″x 32″Rocker Type Toggle Plate(Cast

Iron)

 385 174.60
CPEP-5556 JPI1536T17 20″×32″Rocker Type Toggle Plate

(Fabricated Mild Steel)

 316 143.31
Stationary Jaw P.M. Applications JPI2036S01
Moving Jaw P.M. JPI2036M02
C-00276 Stationary Jaw

Ht:48″

 KD8527 R.E. Sharp 24×36 Old
Style		 1089 493.86
C-00433 C10542 R.E. Rounded 1075 487.51
JPI2436S46 R.E. P.M. 1245 564.61
C-00275 Moving Jaw

Ht:52.00″

 KD8526 R.E. Sharp 1100 498.85
C-00432 C10541 R.E. Rounded 1165 528.33
JPI2436M45 Smooth P.M. 1510 684.79
Stationary Jaw

Ht:48″

 JPI2436S06 Straight P.M. 24×36

Welded Base
Roller
Bearing

 1410 639.44
KD13561 Smooth P.M. 1640 743.74
JPI2436S44 Smooth P.M. 1550 702.93
JPI2436S41 Straight P.M.SE 1575 714.26
C-00897HD Ref R.E. Sharp 1555 705.19
KD8461 Smooth Sharp 1500 680.25
C-00767HD KB8878 R.E. Rounded 1600 725.60
C-00897 Ref
C-00767 Ref 1510 684.79
C-01039 Ref 2135 968.22
Spl for Col.Bit.

Use w/DV1483

 DV1484 Smooth P.M. 1770 802.70
V14905 R.E. P.M. 1775 804.96
JPI2436S42 Straight P.M.Hi-Life 1500 680.25
Moving Jaw

Ht:54.75″

 JPI2436M12 Smooth P.M. 1825 827.64
KD13562 Smooth P.M. 1800 816.30
C-00899HD KB3521 Straight Sharp 1400 634.90
C-00565HD KD10160 Straight Rounded 1270 575.95
KB3521 Smooth Sharp 1665 755.08
C-01040 Ref 2325 1054.39
C-00899 Ref
C-00565 Ref
JPI2436M43 Smooth P.M.Hi-Life 1925 872.99
V17651 Smooth P.M.SE 2025 918.34
Spl for Col.Bit.

Use w/DV1484

 Moving Jaw

Ht:51.5

 DV1483 Smooth P.M. 1890 857.12
Stationary Jaw JPI2436S06 P.M. Applications

(24×36

Welded Base

Roller
Bearing)
JPI2436S44 P.M.
Moving Jaw JPI2436M12 P.M.
JPI2436M12 P.M.
C-00915 Wedges JPI2436W14 35.75″Length Smooth Face Moving Jaw

Wedge   Hd

 Accessories
(24×36

Welded Base
Roller
Bearing)

 60 27.21
CP-28645 JPI2436B37 1″x18″8N.C.Wedge
Bolt		 4.3 1.95
CP-4999 JPI2436B35 1″x10″Bolt 2.5 1.13
CP-5000 JPI2436B36 1″x 11″Bolt 2.75 1.25
C-00919 Cheek Plate JPI2436C19 Left Hand Key Plate}
Fits Crusher		 220 99.77
C-00920 JPI2436C20 Right Hand Key Plate}
Base Frame		 220 99.77
C-00917 JPI2436C21 Left Hand Heel Plate}    CW763 Thru

CW1075

 173 78.46
C-00918 JPI2436C22 Right Hand Heel Plate} 173 78.46
JPI2436C47 Left Hand Heel Plate-1/2″thick plate(C21
w/No Pockets)		 193 87.53
JPI2436C48 Right Hand Heel Plate -1/2″thick plate

(C22 w/No Pockets)

 193 87.53
C-00768 Ref Right Hand Heel Plate 245 111.11
C-00769 Ref Left Hand Heel Plate 245 111.11
C-00771 Ref Right Hand Key Plate 125 56.69
C-00772 Ref Left Hand Key Plate 125 56.69
Note:Following Toggle Parts fit machines wl serial numbers prior to G-430
C-00470 Toggle Parts JPI1536T08 27.25″Length Triangular Shape w/Ear

Pitman Seat

 82 37.19
C-00461 Dwg 23″×27″”S”Curve Cast Iron Plate 366 165.98
C-00462 Dwg 24″×27″”S”Curve Cast Iron Plate 382 173.24
C-00463 KB10846 25″x27″”S”Curve Cast Iron Plate 400 181.40
C-00464 KB10846 26″x27″”S”Curve Cast Iron Plate 415 188.20
C-00465 KB10846 27″×27″”S”Curve Cast Iron Plate 430 195.01
C-00501 JPI1536T09 32″Length Triangular Shape w/Ear Pitman

Seat

 87 39.45
C-00508 KD8865 23″x32″”S”Curve Cast Iron Plate 410 185.94
C-00507 KD8865 24″x32″”S”Curve Cast Iron Plate 470 213.15
C-00504 KD8865 25″x32″”S”Curve Cast Iron Plate 482 218.59
C-00503 KD8865 26″x32″”S”Curve Cast Iron Plate 502 227.66
C-00502 JPI2436T28 27″x32″”S”Curve Cast Iron Plate 515 233.55
C-00836 KD8865 28″x32″”S”Curve Cast Iron Plate 570 258.50
C-00853 KD8865 29″x32″”S”Curve Cast Iron Plate 585 265.30
Note:Newer crushers w/Rocker Type Toggle Parts take the following parts:
C-00969 JPI1536T28 32″Length Rocker Type Pitman Seat 110 49.89
L-02684 KB17188 59.63″Length Rocker Type Frame Seat 160 72.56
CPEP-5909 Ref 25”×32″Rocker Type Plate -Fabricated
CPEP-5908 V13963 27″×32″Rocker Type Plate -Fabricated 510 231.29
C-01030 V13963 27″×32″Rocker Type Plate Cast Iron 510 231.29
C-01023 JPI1036T24 19″x32″Rocker Type Plate-Cast Iron 330 149.66
C-01024 KD25348 20″x32″Rocker Type Plate -Cast Iron 385 174.60
CPEP5907 Ref 26″×32″Rocker Type-Fabricated
Moving Jaw JPI2640M01 Smooth P.M. 26×40

PIONEER

FAST
TRAX

 2500 1133.75
224112 Ht:53.06″ V16629 Smooth Round 2010 911.54
JPI2640M03 Smooth PM Hi-Life 2780 1260.73
Stationary Jaw JPI2640S02 Smooth P.M. 2150 975.03
224113 Ht:49.00″ V16629C Smooth Round 1760 798.16
JPI2640S04 Smooth PM Hi-Life 2320 1052.12
Stationary Jaw

Ht:60″

 JPl3042S05 Smooth P.M. 30×42&36

x 42

 3400 1541.90
JPI3042S47 Smooth Hi-Life 3990 1809.47
C-00952 KD8898 R.E. Rounded 3400 1541.90
JPl3042S04 Smooth Rounded 2440 1106.54
KB20165 Straight Rounded 2075 941.01
C-00604 C10330 Smooth Rounded 3000 1360.50
C-00869 PDD30418 R.E. Rounded 3060 1387.71
C-00966 PDD30417 R.E. Round>< 3040 1378.64
C-01255 C11417 Smooth Round Top 2785 1263.00
JPl3042S65 Smooth P.M.II 3320 1505.62
JPI3042S68 Smooth PM S Brkr 3310 1501.09
JPI3042S74 Smooth P.M.I 3000 1360.50
JPl3042S76 Smooth PMIl Hi-Life 3085 1399.05
JPl3042S66 Smooth PM    SE8″LG 3785 1716.50
JPI3042S70 Smooth PMII SE 3670 1664.35
V10641 Smooth PMII Hi-Life 3470 1573.65
JPl3042S77 Smooth PMII SE 3260 1478.41
Thomas R6051-

2

 C11072 R.E. Flat Top 4050 1836.68
m/c from S47 JPl3042S71 Smooth Hi-Life 3970 1800.40
Spl for Vulcan-

San Bernadino

 JPl3042S75 Smooth PM    SE(18″LG) 4125 1870.69
Spl for Vulcan-

San Bernadino

 JPI3042S80 Smooth PM    SE(18″LG) 5440 2467.04
Note:C-00869 Same as C-00966 but without slots.
206100 Stationary Jaw

Ht:62″

 C11413 Smooth Round Top 2440 1106.54
Wedge Held
Double Bevel
Moving Jaw

Ht:65″

 JPl3042M52 Smooth P.M.Spl HL 3700 1677.95
JPI3042M53 Smooth P.M. 3550 1609.93
JPI3042M09 Smooth P.M. 2700 1224.45
JPl3042M48 Smooth Hi-Life 2990 1355.97
C-00953 KD8897 R.E. Rounded 3400 1541.90
JPI3042M08 Smooth Rounded 2990 1355.97
KD16384 Smooth Rounded 30×42&36

x 42
Continued

 3200 1451.20
C-00599 KD22846 Smooth Rounded 3110 1410.39
C-00967 PDD29934 R.E. Round>< 2770 1256.20
C00870 PDD30416 R.E. Rounded 2870 1301.55
C-01256 C11416 Smooth Round Top 3000 1360.50
JPI3042M64 Smooth P.M.II 3180 1442.13
JPl3042M67 Smooth PM S-Brkr 3060 1387.71
JPl3042M73 Smooth P.M.IⅡ 2920 1324.22
JPI3042M79 Smooth PMII SE 3175 1439.86
JPI3042M81 Smooth PMII Hi-Life 3015 1367.30
JPl3042M72 Smooth PMII Hi-Life 3330 1510.16
JPl3042M69 Smooth PMII SC 3605 1634.87
V14164 Smooth PMII SE 3745 1698.36
JPI3042M78 Smooth PM  SE 3900 1768.65
Stationary Jaw JPI3042S05 P.M. Applications
JPl3042S47 Hi-Life/PM
JPl3042S05 PM /Hi-Life
JPI3042S04 Rounded
Moving Jaw JPI3042M09 P.M.
JPI3042M09 Hi-Life/PM
JPl3042M52 PM /Hi-Life
JPI3042M08 Rounded
C-00916 Wedges JPl3042W46 42″Length Smooth Face Moving Jaw Accessories

(30×42&36

x 42)

 73 33.11
C-01046 JPI3042Z13 Moving Jaw Key -1 Req’d per Set 11 4.99
AA-19870 JPl3042W61 42″Length 51.50″Holes 1 End Thickness
Mov Jaw Clamp		 44 19.95
CP-18336 JPl3042B60 1″×23″8 N.C.5 Req’d per Set,Wedge

Bolt

 6 2.72
AA-19871 Ref Wedge Clamp Shim 1″x10″Gage x42 Lg
AA-19872 Ref Wedge Clamp Shim 1″x.25″Gage x42 Lg
CP-48196 Ref Moving Jaw Clamp(Replaced by

AA19870)
Note:Factory Numbers w/”WSC”prefix indicate fabricated
Note:Late model machines with straight steel Rocker Type toggle plates use the following plates
C-00925 Cheek Plate JPI3042C20 Left Hand Heel Plate 315 142.85
C-00926 JPI3042C21 Right Hand Heel Plate 315 142.85
C-00927 JPI3042C15 Left Hand Key Plate 280 126.98
C-00928 JPl3042C14 Right Hand Key Plate 280 126.98
Special Segmental Cheek Plates (ESCO 2 pc Design)
C-925U-SPL JPl3042C22 Left Hand Upper Heel Plate 215 97.50
C-926U-SPL JPl3042C23 Right Hand Upper Heel Plate 215 97.50
C-925L-SPL JPI3042C24 Left Hand Lower Heel Plate 157 71.20
C-926L-SPL JPI3042C25 Right Hand Lower Heel Plate 157 71.20
C-927U-SPL JPI3042C16 Left Hand Upper Key Plate 170 77.10
C-928U-SPL JPI3042C17 Right Hand Upper Key Plate 170 77.10
C-927L-SPL JPl3042C18 Left Hand Lower Key Plate 120 54.42
C-928L-SPL JPI3042C19 Right Hand Lower Key Plate 120 54.42
CP-5000 JPI2436B36 1″x11″Bolts 16 Req’d per Set,Cheek

Plate Bolt

 6 2.72
Note:Old model machines w/”S”Curve Tog Plts use following plates. (Fits base CW610 &CW978)
C-00614 KD8877 Left Hand Heel Plate 335 151.92
C-00615 KD8877 Right Hand Heel Plate 335 151.92
C-00616 KD8877 Left Hand Key Plate 235 106.57
C-00617 KD8877 Right Hand Key Plate 235 106.57
Special Segmental Cheek Plates(ESCO 2 pc Design)
C-614-SPL JPI3042C28 Left Hand Upper Heel Plate 245 111.11
C-615-SPL JPI3042C30 Right Hand Upper Heel Plate 245 111.11
C-614-SPL JPl3042C29 Left Hand Lower Heel Plate 186 84.35
C-615-SPL JPl3042C31 Right Hand Lower Heel Plate 186 84.35
C-616-SPL JPl3042C32 Left Hand Upper Key Plate 163 73.92
C-617-SPL JPI3042C34 Right Hand Upper Key Plate 163 73.92
C-616-SPL JPl3042C33 Left Hand Lower Key Plate 96 43.54
C-617-SPL JPl3042C35 Right Hand Lower Key Plate 96 43.54
AEP04462 Toggle Parts Ref Adjustable Toggle Seat Accessories

(30×42&36
x 42)
C-00973 JPl3042T62 38″Length w/Ear,Pitman Seat 132 59.86
C-01073 Ref Frame Seat
SPL JPI3042T54 29″Rocker Type 910 412.69
C-01031 JPl3042T59 30″Rocker Type (CPEP-5618) 940 426.29
C-01032 JPl3042T51 31″Rocker Type (CPEP-5619) 970 439.90
C-01033 JPI3042T50 32″Rocker Type(CPEP-5620) 1000 453.50
C-01034 V16871 33″Rocker Type (CPEP-5621) 1030 467.11
C-01067 Ref 34″Rocker Type(CPEP-5622) 1060 480.71
SPL JPl3042T49 36″Rocker Type 1090 494.32
Note:Older model machines w/”S”Curve,Cast Iron Toggle plates use the following parts.
C-00591 KB13846 38″Length Triangular Shape w/Ear,Pitman

Seat

 98 44.44
C-00609 JPl3042T42 29″x38″”S”Curve Cast Iron Plate 735 333.32
C-00608 KB12895 30″x38″”S”Curve Cast Iron Plate 740 335.59
C-00607 JPI3042T40 31″x 38″”S”Curve Cast Iron Plate 750 340.13
C-00606 JPI3042T39 32″x 38″”S”Curve Cast Iron Plate 760 344.66
C-00605 KB12895 33″x38″”S”Curve Cast Iron Plate 770 349.20
C-00634 KB12895 34″x38″”S”Curve Cast Iron Plate 785 356.00
C-00620 JPl3042T36 35″x 38″”S”Curve Cast Iron Plate 800 362.80
Stationary Jaw

Ht:61.88″

 JPl3144S02 Smooth PMⅡ 31×44 2700 1224.45
206100 C11413 Smooth Round Top 2440 1106.54
JPl3144S04 Smooth PM II SE 2925 1326.49
JPl3144S11 Smooth PM II 3872 1755.95
JPl3144S09 Smooth PM II Hi-Life 4035 1829.87
V18408A Smooth PMIⅡ 3530 1600.86
Moving Jaw

Ht:65.00″

 JPl3144M01 Smooth PMⅡ 2950 1337.83
C-01256 C11416 Smooth Round Top 3000 1360.50
JPl3144M03 Smooth PM II Hi Life 3060 1387.71
JPl3144M10 Smooth PM II 3875 1757.31
JPl3144M07 Smooth PM II SE 3235 1467.07
JPl3144M08 Smooth PM II Hi Life 4040 1832.14
V18408 Smooth PM II 3585 1625.80
Note -Pioneer 30×42 Moving Jaws Fit This Crusher
206121 Accessories JPl3144C05 Cheek Plate Lower LH&RH 205 92.97
206120 JPl3144C06 Heel Plate Upper LH&RH 155 70.29
206105 Ref Cheek Plate Upper Front LH&RH 150 68.03
Stationary Jaw

Ht:75.25″

 JPl3546S01 Straight P.M. 35×46 5170 2344.60
C-01129 REF Straight Rnd>< 4400 1995.40
Spl For Boone JPI3546S24 Smooth P.M. 6050 2743.68
Quarry Mod to

S21
JPl3546S17 Straight PM Hi-Life 5300 2403.55
Thomas

R6226-10

 C11073 R.E. Flat Top 5800 2630.30
VUOA9092 Smooth PM Hi-Life 6050 2743.68
JPl3546S18 Straight P.M.SE 5630 2553.21
JPl3546S27 Smooth P.M.SE 6250 2834.38
JPl3546S20 Smooth P.M.SE 6250 2834.38
JPl3546S21 Smooth P.M. 6100 2766.35
JPl3546S23 Smooth PM Hi-Life 5850 2652.98
JPl3546S22 Smooth P.M. 6000 2721.00
Moving Jaw

Ht:82″

 JPI3546M04 Smooth P.M. 6170 2798.10
C-01127 REF Straight Rnd>< 4500 2040.75
VUOA9047 Smooth P.M.SE 6744 3058.40
JPl3546M28 Smooth PM Hi-Life 6470 2934.15
Thomas R6227-

7

 C11074 Smooth Flat Top 5242 2377.25
Ht:81.50″ JPl3546M19 Smooth P.M. 6180 2802.63
Special Fit No Bolt Holes Single Bevel Ends
C-01128 Wedges PDD30009 Smooth Moving Wedge 100 45.35
Cheek Plate JPl3546C26 RH 1-Piece Cheek Plate 675 306.11
JPI3546C25 LH 1-Piece Cheek Plate 675 306.11
C-01121 JPl3546C10 Left Hand Upper Key 340 154.19
C-01122 JPl3546C11 Right Hand Upper Key 340 154.19
C01123 JPl3546C06 Left Hand Lower Key 280 126.98
C-01124 JPl3546C07 Right Hand Lower Key 280 126.98
C-01125 JPl3546C12 Left Hand Lower Heel 288 130.61
C-01126 JPl3546C13 Right Hand Lower Heel 288 130.61
C-1130 JPl3546C14 Left Hand Upper Heel 215 97.50
C-1131 JPI3546C15 Right Hand Upper Heel 215 97.50
C-01043 Toggle Parts JPI3546T09 33″Length Rocker Type Ductile Iron Plate 940 426.29
C-01035A JPl3546T08 35″Length Rocker Type Ductile Iron Plate 1000 453.50
C-01042 Ref Rocker Type Seat
C-01158 PDB33003 29″Length Rocker Type Ductile Iron Plate 920 417.22
C-01050 Ref 33″Length Rocker Type Ductile Iron Plate
C-01209 JPI4248T31 37″Length 1100 498.85
Stationary Jaw JPl3546S01 P.M. Applications

(35×46)
Moving Jaw JPI3546M04 P.M.
Moving Jaw

Ht:30.75

 V11694A Smooth PM II 10×47

ENVIRO

1047J

 870 394.55
207880 V11694 Smooth Flat Top 840 380.94
200161 Ref.
V11694C Smooth PM II 1100 498.85
Stationary Jaw

Ht:27.75

 V11694B Smooth PMIⅡ 830 376.41
207881 V11694 RE Flat Top 800 362.80
200162 Ref.
V11694D Smooth PM II 1060 480.71
Stationary Jaw

Ht:44″

 JPl2148S01 Straight P.M. 1660 752.81
KD18777 Smooth P.M. 2075 941.01
Has 2 KD20669 Smooth ><Slots 2630 1192.71
C-01189 Bolt Holes Ref Straight Rounded 2250 1020.38
JPI2148S06 Straight Hi-Life 1800 816.30
JPI2148S11 Straight P.M.SE 21×48 2140 970.49
No Bolt JPI2148S05 Straight P.M. 1780 807.23
Holes PDD31475 Smooth P.M. 2075 941.01
C-01238 Ref Blunt 2080 943.28
PDD31476 Smooth ><Slots 2630 1192.71
PDD31477 Straight Rounded 2250 1020.38
Moving jaw

Ht:49.50″

 JPI2148M02 Smooth P.M. 2290 1038.52
KD20670 Smooth ><Slots 2825 1281.14
C-01188 KD16428 Smooth Rounded 2565 1163.23
C-01239 Ref Blunt 2600 1179.10
JPI2148M10 Smooth P.M.Hi-Life 2345 1063.46
JPI2148M12 Smooth P.M.SE 2545 1154.16
AEP3865 Cheek Plate JPI2148C06 Right Hand Key Plate 163 73.92
AEP3864 JPI2148C07 Left Hand Key Plate 163 73.92
AEP3863 JPI2148C08 Right Hand Heel Plate 118 53.51
AEP3862 JPI2148C09 Left Hand Heel Plate 118 53.51
C-01208 Toggle Plate KB21953 22″Length Rocker Type Ductile Iron,Plate 465 210.88
Stationary Jaw JPI2148S01/S05 P.M. Applications
Moving Jaw JPI2148M02 P.M.
Stationary Jaw

Ht:45″

 JPI4248S02 Smooth P.M. 42×482    Pc

Base Frame

 4025 1825.34
JPI4248S01 R.E. P.M. 3436 1558.23
JPI4248S46 R.E. P.M.Hi Life 3571 1619.45
C-01005(Patt @
SCW)		 Upper & JPI4248S04 R.E. Rounded 2950 1337.83
Thomas R6082-
3		 Lower C11076 R.E. Flat Top 3575 1621.26
2 Req’d
1 Piece V18025 R.E. P.M. 6500 2947.75
Ht:90.94″
Moving Jaw

Ht:47.75″

 JPI4248M05 Smooth P.M. 3240 1469.34
C-01058(Patt @
SCW)		 JPl4248M28 Smooth Rounded 2520 1142.82
Thomas R6078-

3

 C11075 Smooth Flat Top 2600 1179.10
Upper & JPI4248M35 Smooth PM Hi-Life 3590 1628.07
Lower
2 Req’d
Moving Jaw JPl4248W07 Moving Jaw Wedge (Use with PM Jaws) 410 185.94
C-01057 Center KA37067 Moving Jaw Wedge (Use with OEM Jaws) 325 147.39
CP70664 Wedge Ref CP72409
CP62416 Ref CP66552
Stationary Jaw JPI4248S02 P.M. Applications
JPI4248S01 P.M.
JPI4248S04 Rounded
Moving Jaw JPI4248M05 P.M.
JPI4248M05 P.M.
JPI4248M28 Rounded
30°chk pl ledge 1 Piece JPI4248S36 R.E. P.M.II 42×48 New 1
Pc Base Frame

No.AEP18364

 7550 3423.93
L-03762 Stationary Jaw

Ht:90.50″
1 Req’d

 Ref R.E. Rounded
L-03801 Ref Smooth Rounded 6870 3115.55
V11545 R.E. P.M.II Hi-Life 7702 3492.86
30°chk pl ledge JPI4248S44 R.E. P.M.II Hi-Life 7630 3460.21
Chk pl ledge

parallel

to back

 JPI4248S51 R.E. P.M.II Hi-Life 7630 3460.21
Chk pl ledge
parallel

to back

 JPI4248S55 R.E. P.M.II 7550 3423.93
JPI4248S57 R.E. P.M.II SE 8174 3706.91
V16052-1 Smooth P.M.II SE 8590 3895.57
L-03749 1 Pc Ref Rounded
Moving Jaw

Ht:99.75″
1 Req’d

 JPI4248M43 Smooth P.M. 7520 3410.32
DV3721 Smooth P.M.II 8370 3795.80
V11545 Smooth P.M.II Hi-Life 8656 3925.50
Bolt Hole

2.00×2.75

 JPI4248M56 Smooth P.M.HI-Life 7880 3573.58
JPI4248M45 Smooth P.M.HI-Life 7880 3573.58
V16052A Smooth P.M.SE 8460 3836.61
V16052-0 Smooth P.M.SE 9372 4250.20
L03802 Ref Rounded
Wedge

Ht:4.31″

 DV3722 Moving Jaw Upper Wedge 275 124.71
C-00998 Wedge JPI4248W09 Smooth,4 Thick Accessories 290 131.52
CP62416 Upper Ref Bolts 1.25″×34″Square Head with 2 Hex

Nuts
CP66552 Moving Ref Washer for CP62416 Bolt
BB64282 JPI4248B53 Bolts 1.25″x26″Square Head with 2 Hex

Nuts &Washer

 31 14.06
C-01006 Cheek Plate JPI4248C15 Left Hand Upper Heel Plate 480 217.68
C-01007 JPI4248C16 Right Hand Upper Heel Plate 480 217.68
C-01008 JPI4248C18 Left Hand Lower Heel Plate 290 131.52
C-01009 JPI4248C17 Right Hand Lower Heel Plate 290 131.52
C-01010 JPI4248C11 Left Hand Lower Key Plate w/30 deg

bevel

 340 154.19
C-01011 JPI4248C12 Right Hand Lower Key Plate w/30 deg

bevel

 340 154.19
C-01012 JPI4248C13 Left Hand Upper Key Plate w/30 deg

bevel

 585 265.30
C-01013 JPI4248C14 Right Hand Upper Key Plate w/30 deg

bevel

 585 265.30
CP-7985 JPI4248B32 Key Plate Bolt Assembly 5 2.27
45-00205 JPI4248B52 Key Plate Bolt Assembly 14″Long 6 2.72
BB65827 Cheek Plates Ref Upper Heel Plate 2 Req’d
AEP18371&

AEP18372

 w/Base JPI4248C38 Lower Cheek Plate 2 Req’d 235 106.57
BB65828 Frame Ref Lower Heel Plate 2 Req’d
A13458&

AEP18370

 AEP   18364 JPI4248C37 Upper Cheek Plate 2 Req’d 350 158.73
BB79201L JPI4248C39 Upper Heel Plate LH 1 Req’d Accessories

(42×48    New

1 Pc Base

Frame No.

AEP18364)

 360 163.26
BB79201R JPI4248C40 Upper Heel Plate RH 1 Req’d 360 163.26
BB79200L JPI4248C41 Lower Heel Plate LH 1 Req’d 310 140.59
BB79200R JPI4248C42 Lower Heel Plate RH 1 Req’d 310 140.59
JPl4248C47 Upper Cheek Plate RH(30 deg Bevel

version of C37)

 370 167.80
JPI4248C48 Upper Cheek Plate LH (30 deg Bevel

version of C37)

 370 167.80
JPI4248C49 Lower Cheek Plate RH(30 deg Bevel

version of C38)

 252 114.28
JPI4248C50 Lower Cheek Plate LH (30 deg Bevel

version of C38)

 252 114.28
JPI4248C51 Upper Heel Plate RH-11/2″Thick 500 226.75
JPI4248C52 Upper Heel Plate LH-11/2″Thick 500 226.75
JPI4248C53 Lower Heel Plate RH-11/2″Thick 435 197.27
JPI4248C54 Lower Heel Plate LH-11/2″Thick 435 197.27
AEP20378 V13581-1 Upper Heel Plate RH-1″Thick 335 151.92
AEP20379 V13581-1 Upper Heel Plate LH-1″Thick 335 151.92
AEP20376 V13581-2 Lower Heel Plate RH-1″Thick 294 133.33
AEP20377 V13581-2 Lower Heel Plate LH-1″Thick 294 133.33
C-00992 Toggle Parts KB17131 Rocker Type Pitman Seat 390 176.87
C-01042 Ref Rocker Type Seat
C-01035A JPl3546T08 35″Length Rocker Type 1000 453.50
C-01043 JPl3546T09 33 Length Rocker Type 940 426.29
C-01158 PDB33003 29″Length Rocker Type 920 417.22
C-01209 JPl4248T31 37″Length Rocker Type 1100 498.85
C-01050 Ref 33″Length Rocker Type
C-00994 Ref Frame Seat 2000 907.00
DV3723 Toggle Seat 42″Long (For 1 Pc Base

Frame Jaw)

 275 124.71
138837 Moving Jaw

Ht:53.00″

 C11415 Smooth Round 24×49   FAST

TRAX&26x

50 PIONEER

 2437 1105.18
JPI2449M01 Smooth PMⅡ 3220 1460.27
JPI2449M03 Smooth PMII SE 3310 1501.09
V17944 Smooth PM  I 2730 1238.06
Special End

Chamfer
(Jordan)

 JPI2449M06 Smooth PM II 3215 1458.00
138838 Stationary Jaw

Ht:49.00″

 C11414 Smooth Round 2182 989.54
JPI2449S02 Smooth PMⅡ 2880 1306.08
JPI2449S04 Smooth PMII   SE 3300 1496.55
Special End

Chamfer
(Jordan)

 JPI2449S05 Smooth PM II 2875 1303.81
V17944A Smooth PM  I 2515 1140.55
Wedges
Cheek Plate V16731 Lower Cheek Plate RH&LH. 127 57.59
211281 Toggle Parts V16630D Plate 25”×4115/16″(Material to be

verified)

 595 269.83
Stationary Jaw

Ht:71.94″

 JPl3350S01 Smooth P.M.SE 33×50 6770 3070.20
JPl3350S03 Smooth P.M. 5860 2657.51
138813 REF 4969 2253.44
JPI3350S04 Smooth P.M.Hi-Life 6070 2752.75
V18184 Smooth P.M. 5000 2267.50
V18184A Smooth P.M.Hi-Life 5135 2328.72
Moving Jaw

Ht:77.12″

 JPI3350M02 Smooth P.M. 5378 2438.92
138812 REF 5276 2392.67
V15213 Smooth P.M.Hi-Life 5587 2533.70
V18184B Smooth P.M. 4518 2048.91
Stationary Jaw

Ht:56″

 JPI2854S05 Smooth P.M.II 3210 1455.74
PDE42016 Smooth Rounded 3080 1396.78
L-03658 JPI2854S11 Smooth PM II Hi-Life 3370 1528.30
JPI2854S10 Smooth PM I S-Brkr 3440 1560.04
5 Tooth
JPI2854S13 Smooth P.M.II 3810 1727.84
JPI2854S14 Smooth PMII   SE 3560 1614.46
JPI2854S17 Smooth PM II Hi-Life 3970 1800.40
L-03799 Ref 3510 1591.79
L-03659 PDE42017 Straight Rounded 3180 1442.13
JPI2854M04 R.E. P.M.II 4230 1918.31
JPI2854M09 Smooth PM II S-Brkr 3700 1677.95
4 Tooth

Moving Jaw

Ht:60.50″

 JPI2854M12 R.E. P.M.II

28×54

 4260 1931.91
V15770 R.E. PM II Hi-Life 4450 2018.08
V15770A R.E. PM II SE 4690 2126.92
JPI2854M18 R.E. PM II SE 3970 1800.40
L-03869 Ref L03800 c/w

Solid Ends

 4582 2077.94
L-03800 Ref 3565 1616.73
WSC-01046 Wedges KA33095 Moving Jaw Key 11 4.99
AEP-15043 Ref Moving Jaw Wedge Head
BB-49225 Ref Moving Jaw Clamp Plate
BB-49226 Ref Moving Jaw Shim 10GA
BB-49227 Ref Moving Jaw Shim.25”
CP-05002 JPI2854B07 Mov Jaw Wedge Bolt(1″x15″Sq Head)
Assy w/Hex Nut &Flat Washer		 9 4.08
AEP-15031 Cheek Plate JPI2854C16 Key Plate RH&LH 2 Req’d 350 158.73
BB-49186 JPI2854C15 Heel Plate 265 120.18
BB-49191 JPI2854B06 Bolts 1″x6″Sq Head (Assy w/Hex Nuts &

Flat Washers)

 3 1.36
ESCO   Spl JPI2854C01 Upper Key Plate,RH or LH (CAST) 190 86.17
ESCO   Spl JPI2854C02 Lower Key Plate,RH or LH(CAST) 165 74.83
L-03662 Toggle Plate JPI2854T08 Toggle Plate 26 Rocker Type 673 305.21
L-03661 Ref Pitman Seat
AEP-15032 Ref Adjustable Seat Rear
Stationary Jaw JPI2854S05 P.M.Il Applications

(28×54)
JPI2854S11 P.M.II
JPI2854S13 P.M.II
Moving Jaw JPI2854M04 P.M.II
JPI2854M04 P.M.II
JPI2854M12 P.M.II
(“SE”of SO4) Stationary Jaw

Ht:59.38″

 JPI3055S05 Smooth PM II SE 30×55 5030 2281.11
JPl3055S01 Smooth PMII 3768 1708.79
JPl3055S02 Smooth PM II SE 4065 1843.48
4194(Kimball) V16785 Smooth Round 3122 1415.83
JPI3055S03 Smooth PM II Hi-Life 3865 1752.78
JPI3055S04 Smooth PM Ⅱ 4465 2024.88
Moving Jaw

Ht:60.50″

 JPI2854M04 R.E. PMII 4230 1918.31
JPl2854M12 R.E. PM ll 4260 1931.91
JPI2854M18 R.E. PM II SE 3970 1800.40
V15770 R.E. PMII Hi-Life 4450 2018.08
V15770A R.E. PM II SE 4690 2126.92

Related Products Recommendation
