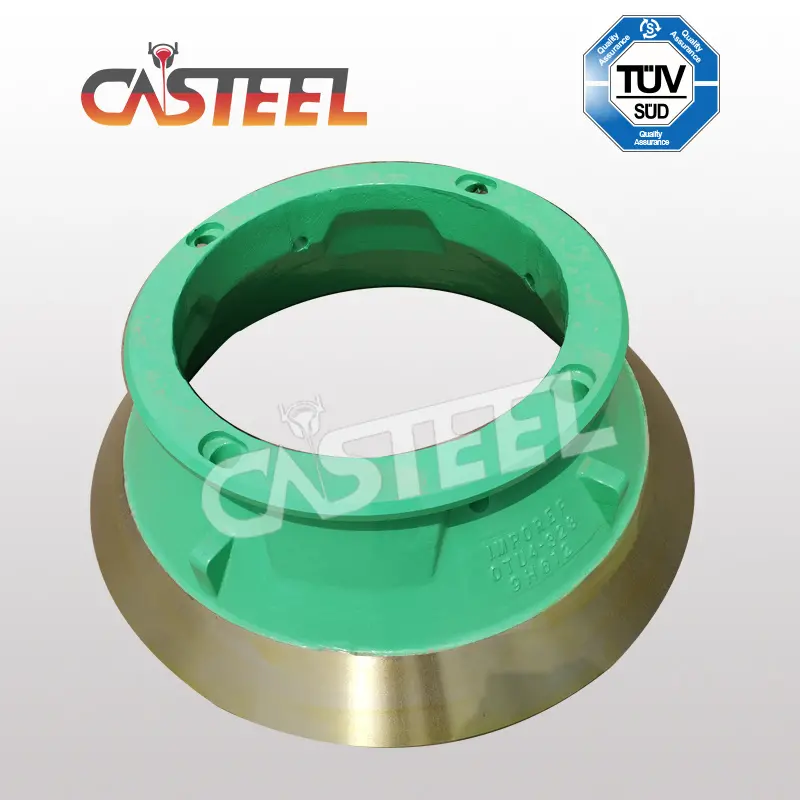

KPI-JCI Cone Crusher Parts :
Items: Concave, Mantle, Concave Ring, Concave Segment, Bowl Liner, ConeLiner,Arm Guard, Distribution Plate
Casting Material: Austenstic Manganese Steel (Mn14, M14Cr2, Mn18Cr2,Mn22Cr2)
Casting Method: Water Glass Sand Casting
Applicable Material:Gravel, Granite, Basalt, Ore, Limestone, Sandstone, Quatz,Cobblestone
Applications: Mining, Quarry, Construction,Cement and Materials ,Recycling
CASTEEL Foundry has Coverage of Koberg-Pioneer and Johnson crusher International match with following models:
KPI-JCI Kodiak Series :K200+ k300+|K400+
| Item Code | Item name | Description | Model | Weight |
| 406051X | Mantle Coarse Chamber | Cone Liner | Kodiak 200 | 567 |
| 406053X | Liner Coarse Chamber | Cone Liner | Kodiak 200 | 655 |
| 406051X | Mantle Medium Chamber | Cone Liner | Kodiak 200 | 567 |
| 406055X | Liner Medium Chamber | Cone Liner | Kodiak 200 | 671 |
| 406052X | Mantle Fine Chamber | Cone Liner | Kodiak 200 | 503 |
| 406056X | Liner Fine Chamber | Cone Liner | Kodiak 200 | 593 |
| 406051X | Mantle Medium Chamber with Feed Slots | Cone Liner | Kodiak 200 | 567 |
| 406054X | Liner Medium Chamber with Feed Slots | Cone Liner | Kodiak 200 | 671 |
| 456262X | Mantle Coarse Chamber | Cone Liner | Kodiak 300 | 726 |
| 456394X | Liner Coarse Chamber | Cone Liner | Kodiak 300 | 791 |
| 456262X | Mantle Medium Coarse Chamber | Cone Liner | Kodiak 300 | 726 |
| 456495X | Liner Medium Coarse Chamber | Cone Liner | Kodiak 300 | 847 |
| 456262X | Mantle Medium Chamber with Feed Slots | Cone Liner | Kodiak 300 | 726 |
| 456396X | Liner Medium Chamber with Feed Slots | Cone Liner | Kodiak 300 | 849 |
| 456262X | Mantle Medium Chamber | Cone Liner | Kodiak 300 | 726 |
| 456395X | Liner Medium Chamber | Cone Liner | Kodiak 300 | 845 |
| 456262X | Mantle Medium Fine Chamber | Cone Liner | Kodiak 300 | 726 |
| 456397X | Liner Medium Fine Chamber | Cone Liner | Kodiak 300 | 836 |
| 456322X | Mantle Fine Chamber | Cone Liner | Kodiak 300 | 728 |
| 456398X | Liner Fine Chamber | Cone Liner | Kodiak 300 | 752 |
| 546745X | Blow Liner C | Cone Liner | Kodiak 400 | 1124 |
| 546034X | Mantle C | Cone Liner | Kodiak 400 | 1014 |
| 546747X | Blow Liner M with feed slots | Cone Liner | Kodiak 400 | 1206 |
| 546746X | Blow Liner M | Cone Liner | Kodiak 400 | 1209 |
| 546748X | Blow Liner MF | Cone Liner | Kodiak 400 | 1184 |
| 546749X | Blow Liner F | Cone Liner | Kodiak 400 | 1174 |
| 546038X | Mantle F | Cone Liner | Kodiak 400 | 1014 |
| 546039 | Bowl Liner F | Cone Liner | Kodiak 400 | |
| 546038 | Mantle F | Cone Liner | Kodiak 400 | 986 |
| 546068 | Bowl Liner EF | Cone Liner | Kodiak 400 | |
| 546035X | Blow Liner | Cone Liner | Kodiak 400 | 1341 |
| 546747 | BowlLiner | Cone Liner | Kodiak 400 | 1207 |
| 546748 | BowlLiner | Cone Liner | Kodiak 400 | 1184 |
| 456074 | BowlLiner | Cone Liner | Kodiak 400 | 866 |
| 546034 | Mantle | Cone Liner | Kodiak 400 | 1059 |
| 456262 | Mantle | Cone Liner | 718 | |
| 406051 | Mantle | Cone Liner | 566 |
