Hammer
Two materials for the same Hammer
Same casting profile and the same fitment — the right material depends on how abrasive your feed is.
RECOMMENDED FOR HARD ROCK

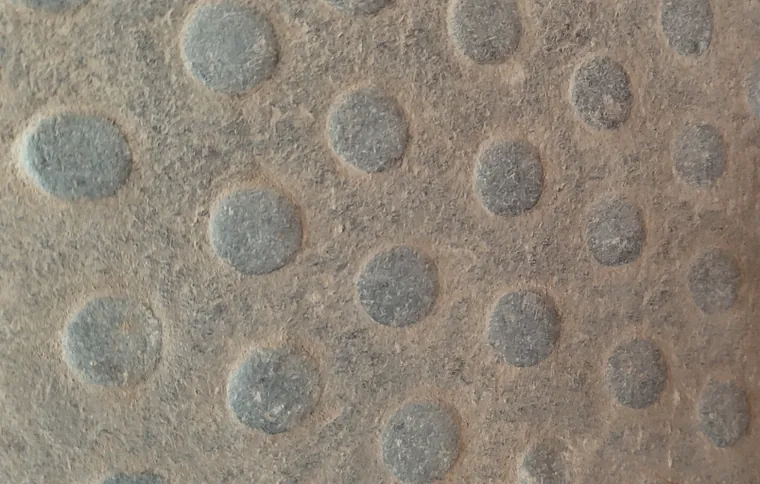

Alloy Bar — Composite
High manganese steel + embedded alloy bars (CA-Alloy 60)
- About 2× the wear life of plain manganese steel

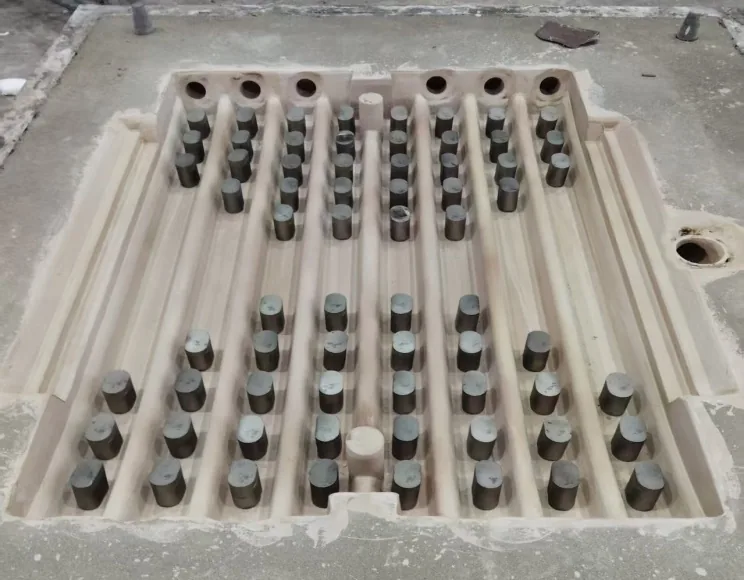

- Metallurgical bond — cast in, not inserted
- Custom preform geometry for your chamber
- Lower cost per tonne crushed than bought-in carbide inserts
Cost: +30–40% · How it is made →
Standard — High manganese steel
The standard material for crusher wear parts
- Proven, work-hardening manganese steel
- Excellent impact toughness
- Lowest cost per part
- Wears faster in hard, high-silica rock
Best for: moderate abrasion and impact · budget-driven replacement cycles
Send us the crusher model and the feed material and we will quote both materials side by side, priced against expected life.

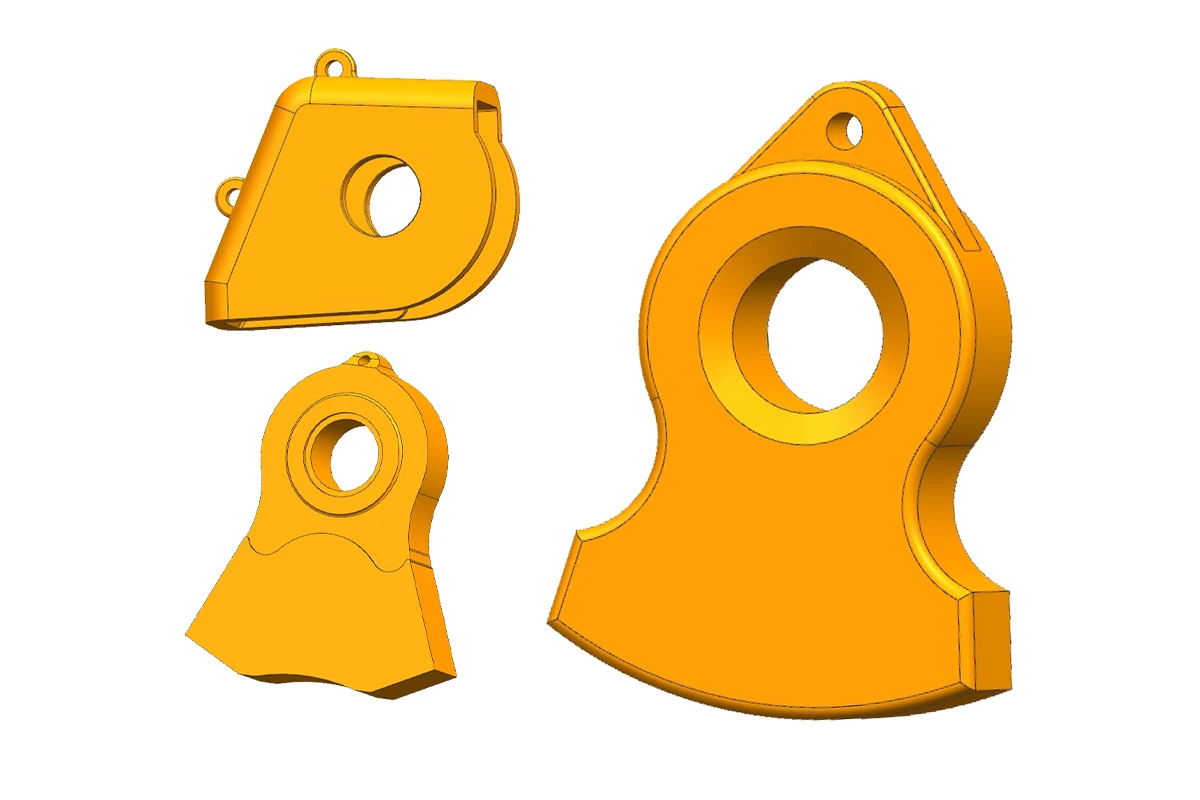

Hammer
Shredder hammers, bimetal hammers, hammer heads, grates, rejector doors and pin protectors for metal shredders and hammer crushers.
Part types
- Shredder Hammer
- Bimetal Hammer
- Hammer Head
- Grate
- Rejector Door
- Pin Protector
Adapted machines :
Contact Us
Matching products
Need a different part?
We cast and machine wear parts to drawing — send the part number, machine model or a drawing and you will get a quotation within 24 hours. Custom alloys (Mn13Cr2 / Mn18Cr2 / Mn22Cr2 / Cr26) and TiC hard-facing are available on request.
